arrows define the non-directional functionality where faults can be detected in both
directions.
GUID-276A9D62-BD74-4335-8F20-EC1731B58889 V1 EN

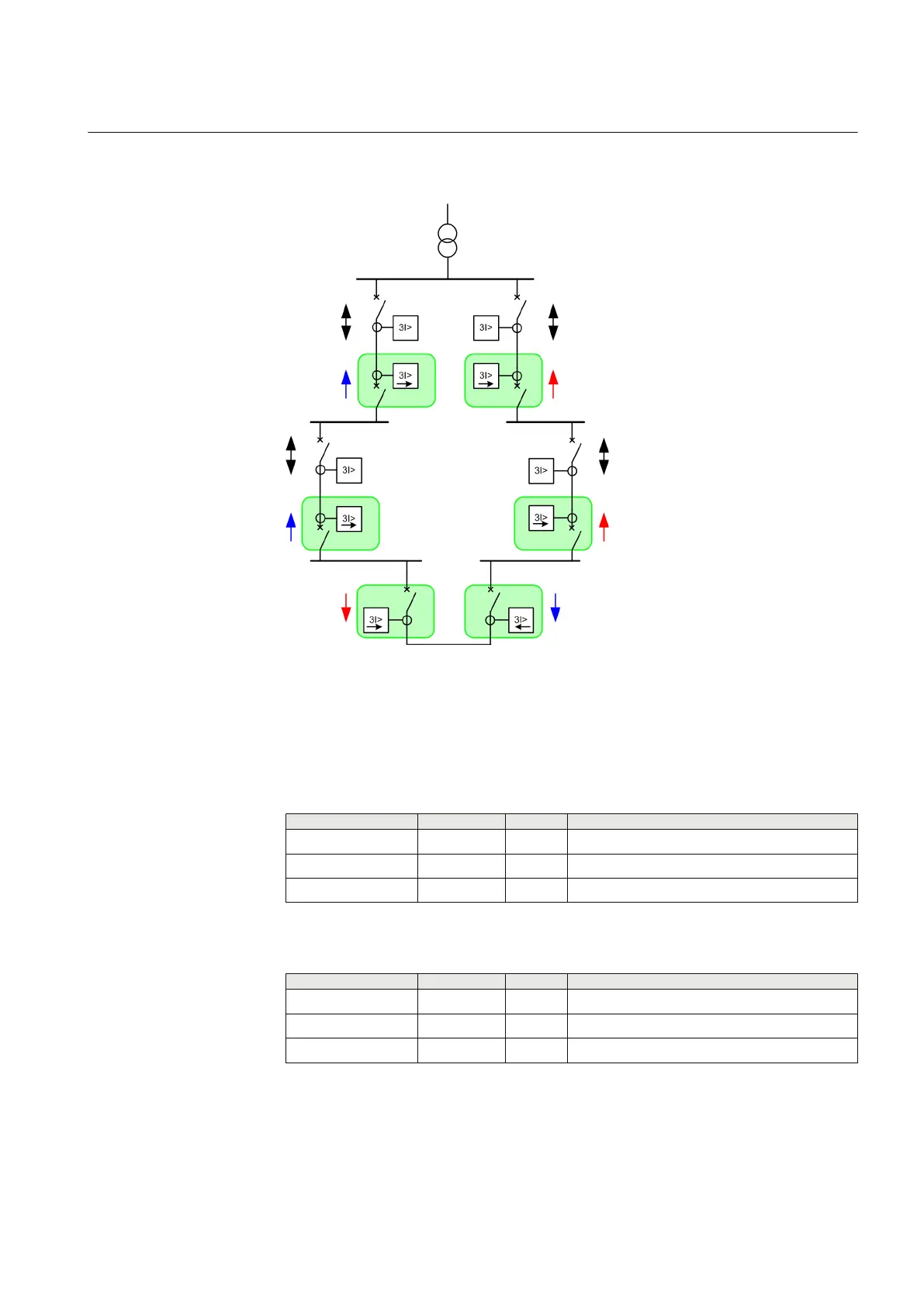

Figure 114: Closed-ring network topology where feeding lines are protected
with directional overcurrent IEDs
4.1.4.8 Signals
Table 219: DPH3LPDOC Input signals
Name
Type Default Description
BLOCK BOOLEAN 0=False Block signal for activating the blocking mode
ENA_MULT BOOLEAN 0=False Enable signal for current multiplier
NON_DIR BOOLEAN 0=False Forces protection to non-directional
Table 220: DPH3HPDOC Input signals
Name
Type Default Description
BLOCK BOOLEAN 0=False Block signal for activating the blocking mode
ENA_MULT BOOLEAN 0=False Enable signal for current multiplier
NON_DIR BOOLEAN 0=False Forces protection to non-directional
1YHT530004D05 D Section 4
Protection functions
615 series 219
Technical Manual

ABB REF615 K Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Voltage	100-240 V AC/DC
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Protection Functions	Overcurrent, earth fault, thermal overload
Operating Temperature Range	-25°C to +55°C
Ingress Protection	IP20
Mounting	Flush mounting
