Size
Dimensions mm (in) for
S26SS Triclamp
A (dia) B (dia)
2 in. 56.3 (2.2) 64 (2.5)
3 in. 83 (3.26) 91 (3.58)
4 in. 110.3 (4.34) 119 (4.68)
134 (5.3)
20 (0.79)
Ø B
Ø A
27 (1.06)

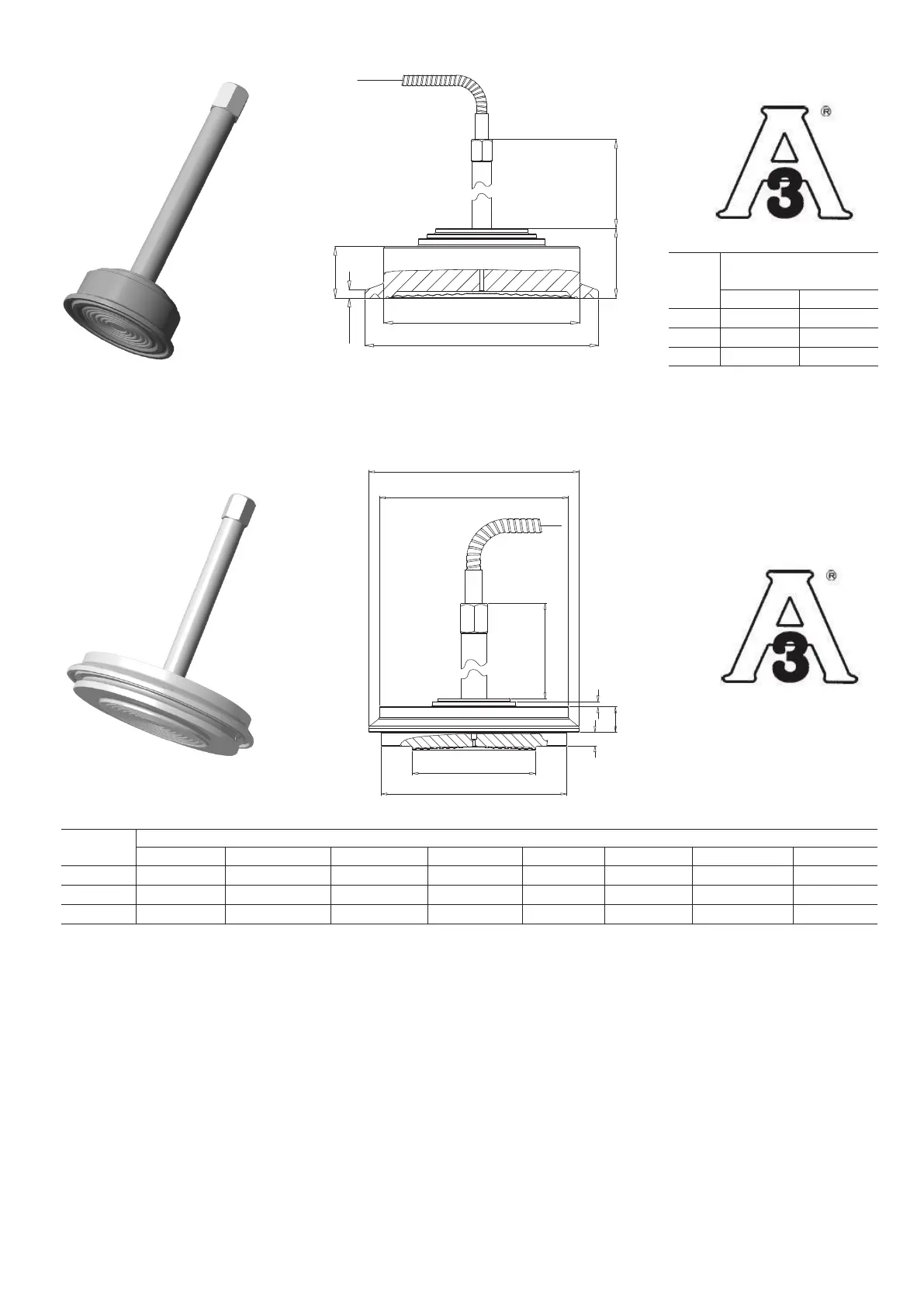

Figure 36: Triclamp sanitary seal
Cherry Burrell seal
The Cherry Burrell seals are designed for connection to 2in, 3in or 4in Cherry Burrell I-Line sanitary fittings. A 4in. V-band clamp is
optionally available for the 4in. variant.
Size
Dimensions mm (in) for S26S Cherry Burrell
A (dia) B (dia) C (dia) D (dia) E F G H
2 in. 67 (2.64) 56 (2.2) 42 (1.65) 57 (2.24) 3.2 (0.13) 6.5 (0.26) 12.5 (0.49) 3 (0.12)
3 in. 98.4 (3.87) 81 (3.19) 72.42 (2.85) 83.8 (3.3) 2.4 (0.09) 7.9 (0.31) 15 (0.59) 3 (0.12)
4 in. 124 (4.88) 111.25 (4.38) 72.42 (2.85) 109.3 (4.3) 2.4 (0.09) 7.9 (0.31) 15 (0.59) 3 (0.12)
Ø B
Ø A
H
G
E
Ø C
Ø D
134 (5.3)
Figure 37: Cherry Burrell sanitary seal
2600T Series Pressure transmitters | OI/S266-EN Rev. B 31
