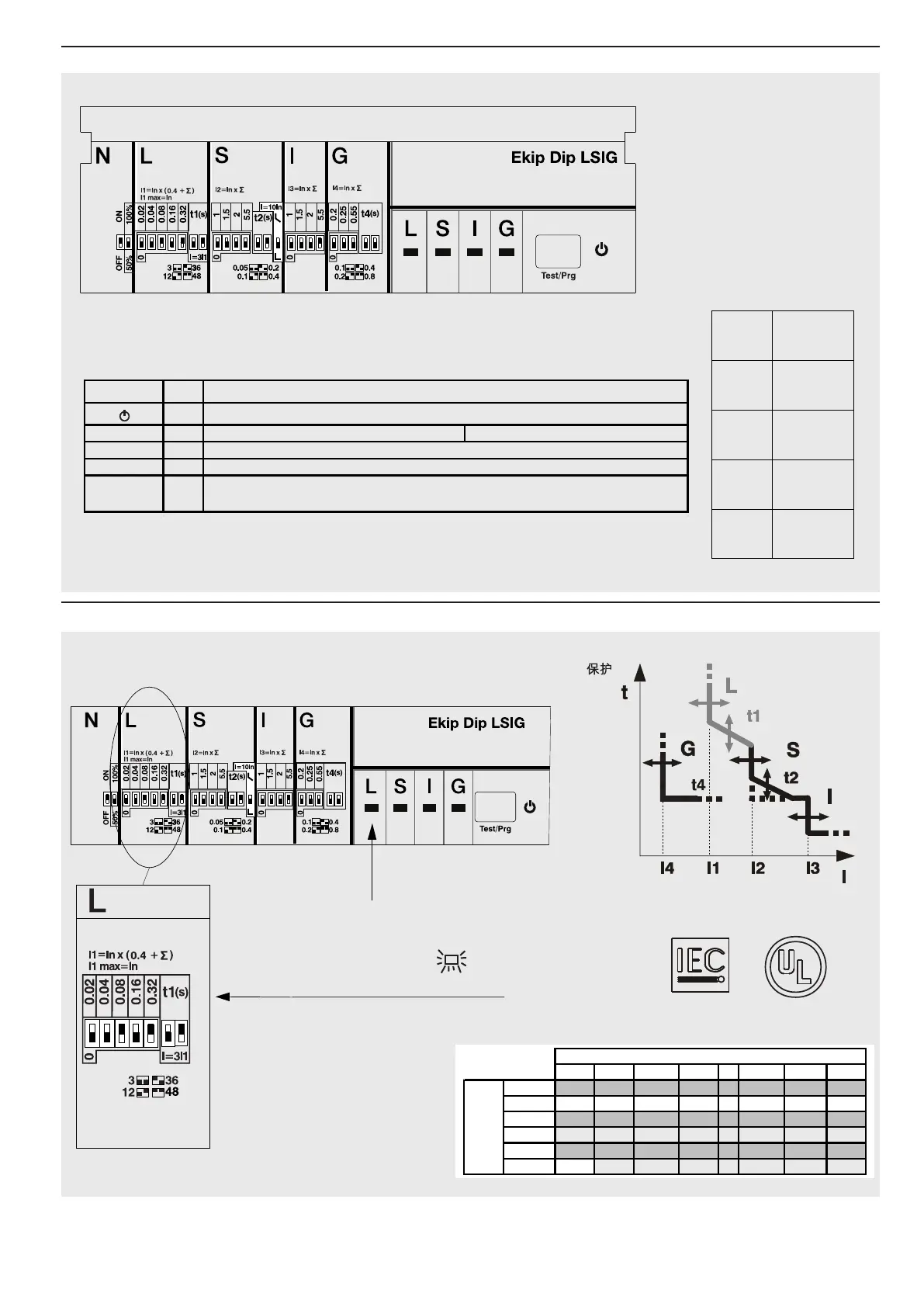

DIP LSI/LSIG Trip Unit
DIP LSI/LSIG Trip Unit
Default setting
Settaggio di default
Default-Einstellung
Configuration par défauit
Ajuste de default
默认手动设置
L
S
I
InN
0,4In; 3s
Of
f; 0,1s
5,5In
Off; 0,1s
3p = Off
4p = 50%
G
Green
L Red LED Fixed = L pre alarm (0,9 * I1 < I < 1,2 * I1) LED Blinking = L alarm (I > 1,2 * I1)
S Red
G Red
L | S | I | G Red
LED Fixed = Device active
LED Blinking = G alarm (I > I4)
All LED Blinking = Parameters inconsistency - L = S or S
_
>
I.
All LED Blinking without Parameters inconsistency = generic fault (please contact ABB)
LED Color
CONDITION Run time
LED Blinking = S alarm (I > I2)
Notes-Note-Anmerkungen-Nota-Notas-注释
Ifault > I1 = Alarm
Alarm = Red-Rosso-Rot
Vermelho-Rojo - 红色
(
)
Example-Esempio-Beispiel-Exemple-Ejemplo-
In=630A
I1=630 x (0,4 + 0,4) = 504A
t1= 12s@1512A (3xI1)
Protection L- Protezione L- Schutzfunktion L - Proteção L- Protección L - L
例子
In (A) 0,4 0,42 0,44 … 0,96 0,98 1
IEC - UL 250 100 105,0 110,0 240,0 245,0 250
UL 300 120 126,0 132 288 294,0 300
IEC 320 128,0 134,4 140,8 307,2 313,6 320
IEC - UL 400 160,0 168,0 176,0 384,0 392,0 400
UL 600 240 252 264 576 588 600
IEC 630 252 264,6 277 605 617,4 630
XT5
I1 (In)
