ABB SM500F Door Assembly Replacement

SM500F Color and Monochrome V ideographic Recorders
Door Assembly Replacement 3 Door Assembly Replacement
2 INF08/001 Rev. C

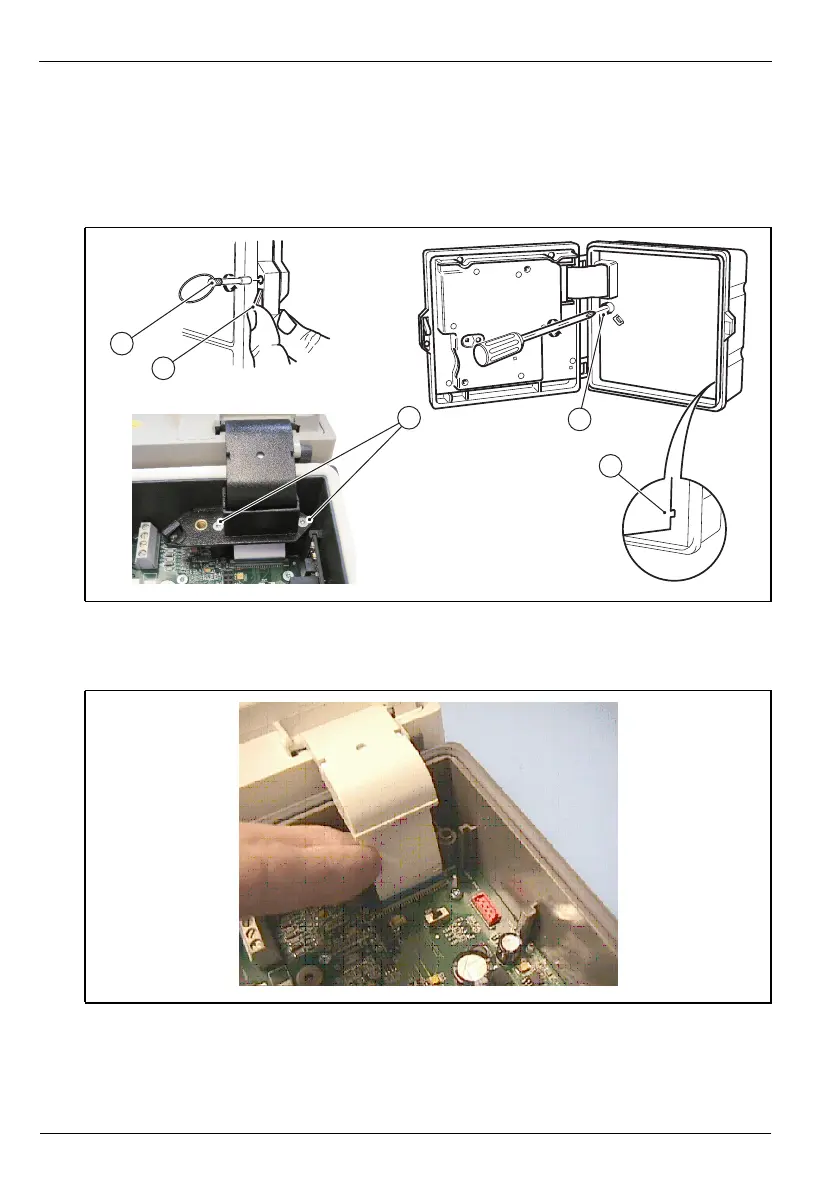

2. Referring to Fig. 3.1:
a. Unlock the door with the key A, press the release catch B and open the door.
b. Remove the tamper-evident seal (if fitted), release the captive screw C securing the inner
cover plate and remove the plate.
c. Remove the two Torx screws D securing the cable clamp and remove the cable clamp.
3. Referring to Fig. 3.2, disconnect the processor board flexi-cable from the motherboard.
Fig. 3.1 Removing the Cable Clamp
Fig. 3.2 Disconnecting the Processor Board Flexi-Cable
K
C
D
A
B
