ABB SM500F Door Assembly Replacement

SM500F Color and Monochrome Videographic Recorders
Door Assembly Replacement 3 Door Assembly Replacement
INF08/001 Rev. C 3
4. Referring to Fig. 3.3, remove the slotted spring (Bissel) pins, remove the door assembly and place it
face down on the work surface.
5. Referring to Fig. 3.4, remove the 6 Torx screws E securing the door assembly rear cover and
remove the rear cover.
Continued…

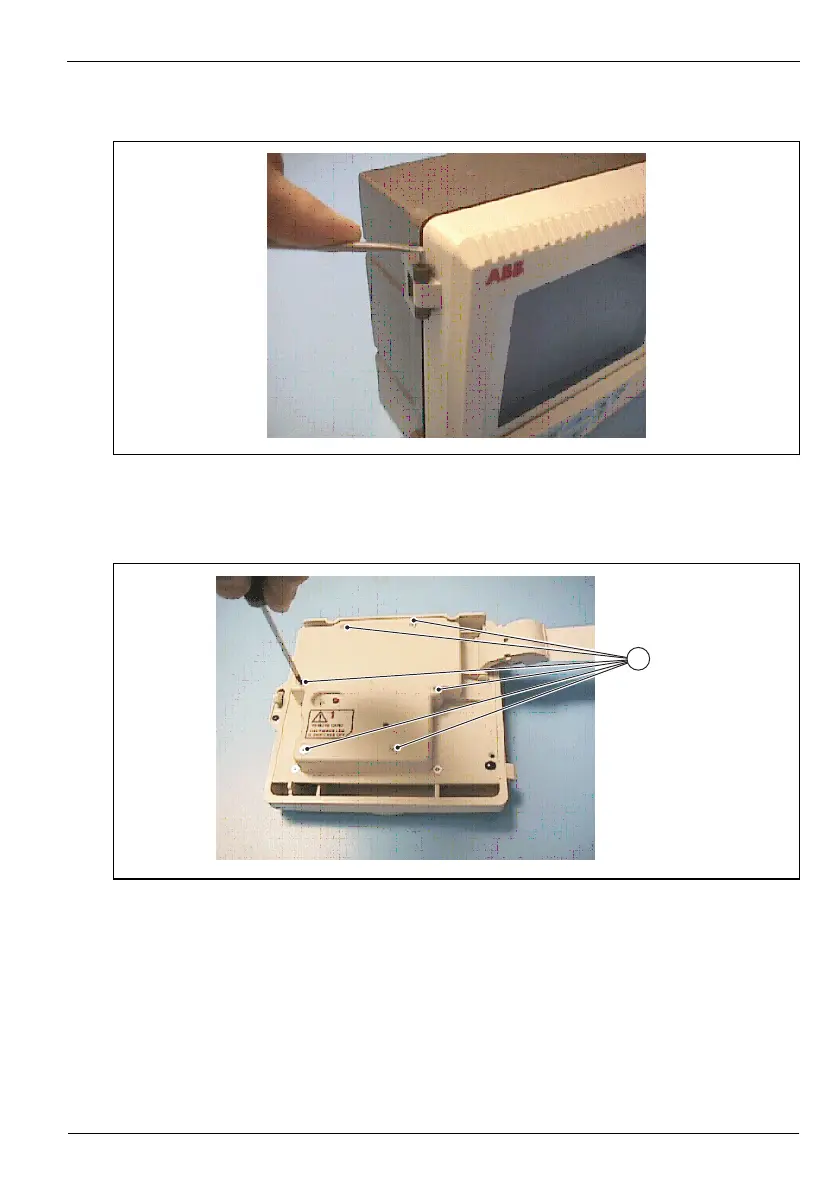

Fig. 3.3 Removing the Door Hinge Pins
Fig. 3.4 Removing the Rear Cover
E
