The feeder terminal SPAC is housed in a nor-
mally flush-mounted case. The unit is fixed to
the mounting panel by means of four mounting
brackets.
A surface mounting case SPA-ZX 316 is also
available.
Application
Mounting and
dimension drawings
Flush mounting case
226
162
136
196
252
218
22
Panel cut-out
214 ±1
139 ±1
34
197
292
263
312
242
197
6
Surface mounting case

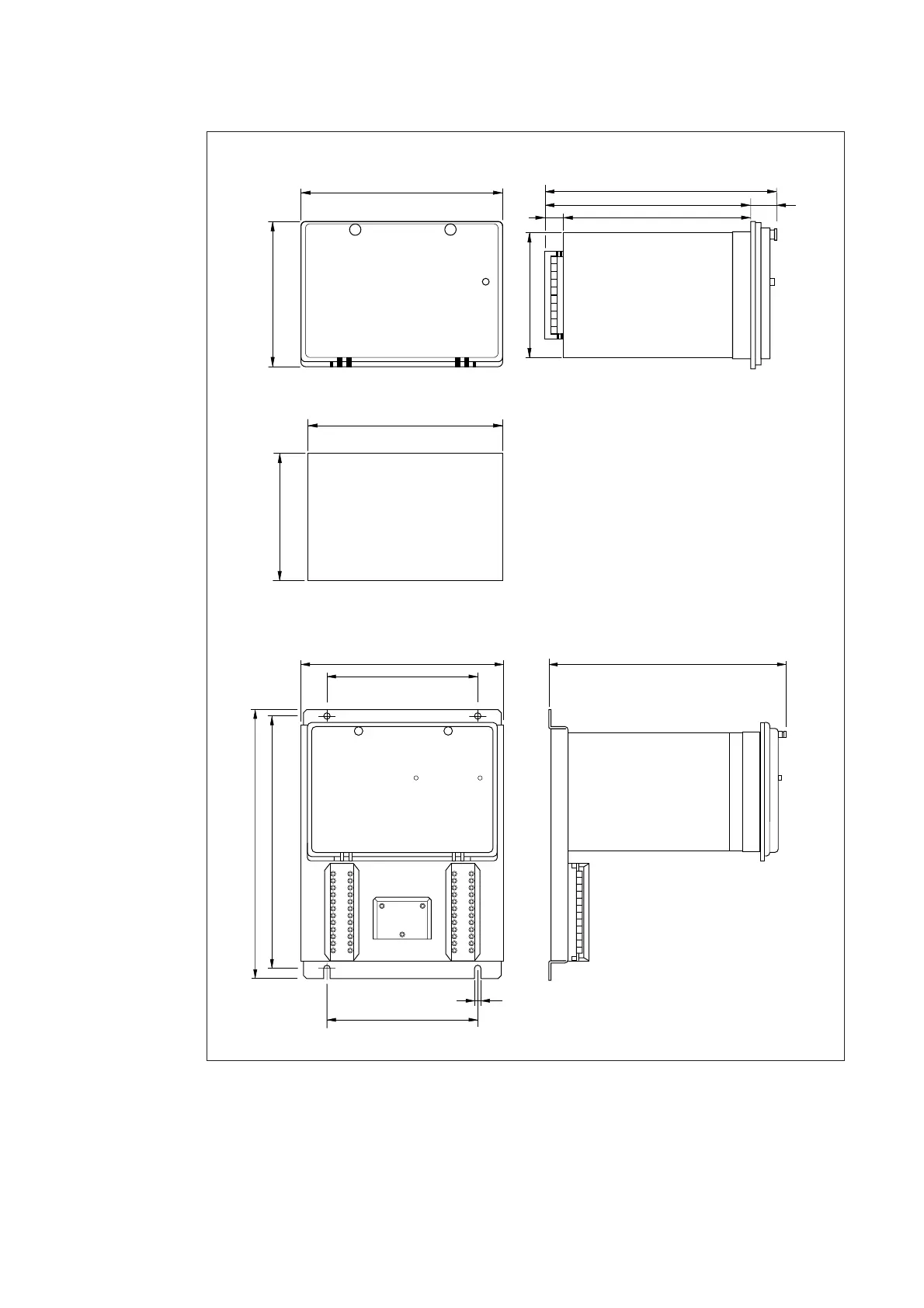

Fig. 4. Mounting and dimension drawings of feeder terminals SPAC 310 C and SPAC 312 C
