12
Example 3: To program a configuration similar
to the default configuration 1 (indicator 109 CB
truck, indicator 110 CB and indicator 116 earth-
switch), the following commands are required:
>99WS198:0:XX
; Change into program mode
>99WS100:0:XX
; Change into freely programmable mode
>99WS109:1,1,1,0:XX
; CB truck : vertical red LEDs indicate
closed status, input channel 1, not
controlled
>99WS110:1,1,2,20,1:XX
; Circuit breaker : vertical red LEDs
indi cate closed status, input channel 2,
controlled
>99WS116:1,1,3,0:XX
; Earth-switch : horizontal red LEDs
indicate closed status, input channel 3,
not controlled
>99WV151:1:XX
; Store the programmed parameters
After this also the interlocking program must be
written before opening or closing of the circuit
breaker is possible. See Chapter "Interlocking".
The programmed configuration can be read
indicator by indicator or with a single com-
mand.
Example 4: To read the configuration of indica-
tors 101…116 with one command only.
>99RS101/116:XX
This command will give all the setting values of
every indicator (101 to 116 ), including those
not configured into the system. The parameters
of indicators not in use are zero.
912B

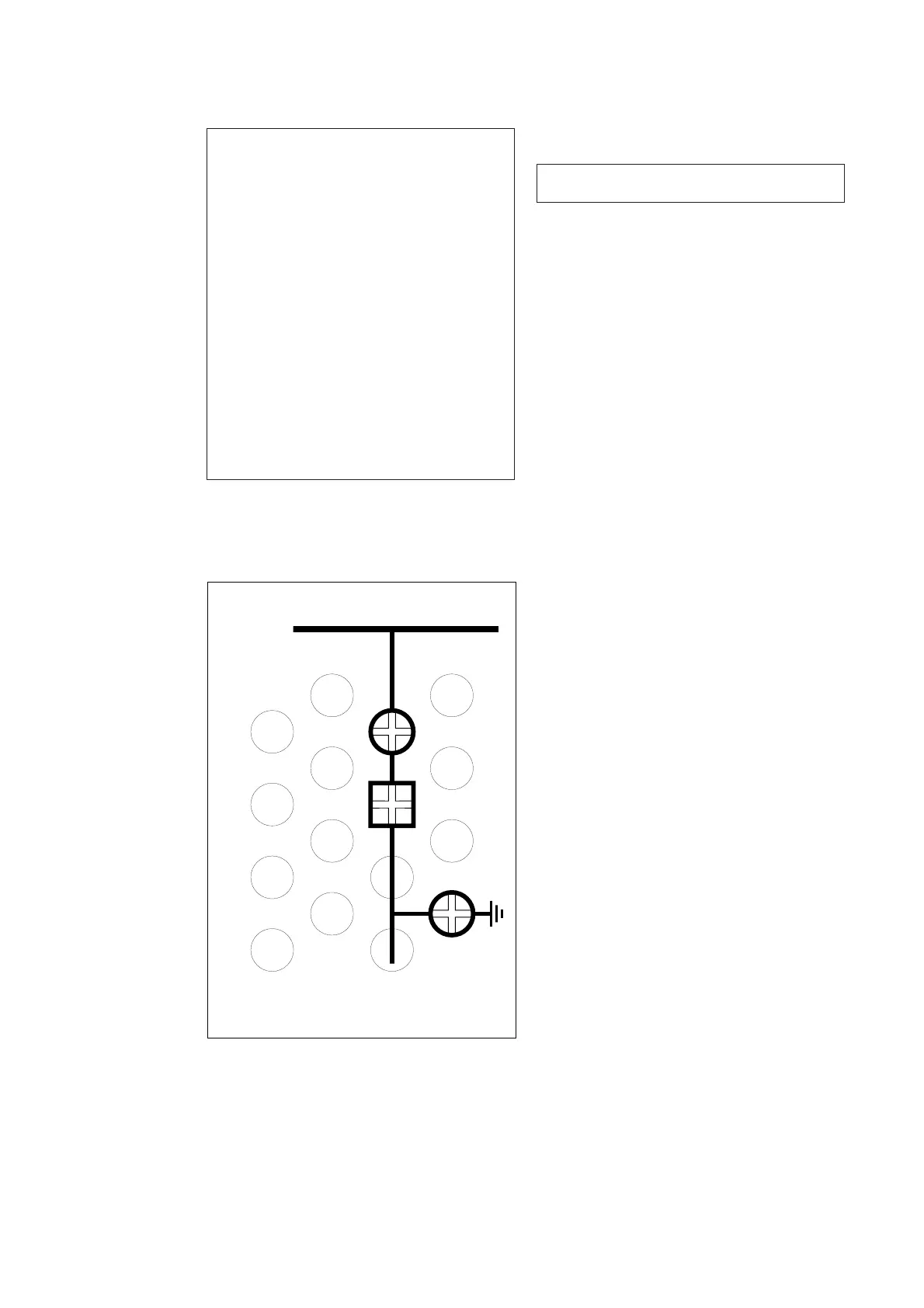

Fig. 7. Configuration programmed in the exam-
ple number 3.
