Setup and Installation
Configuring Inputs
Configure the ASI module by setting the specifications in FCs
215 and 216 in the controller and setting the input jumpers on
both the ASI module and the termination unit. Refer to
Section 4 for more information on configuration and calibra-
tion.
Each input on the ASI module has a jumper block. The jumper
block has different ways it can be configured: millivolt, thermo-
couple, RTD, voltage and current. Jumper block J1 matches
channel one, jumper block J5 matches channel five, jumper
block J16 matches channel 16, etc. Each channel can be con-
figured independently. The ASI module can have any number
of inputs configured as resistance, low level voltage, or high
level voltage.

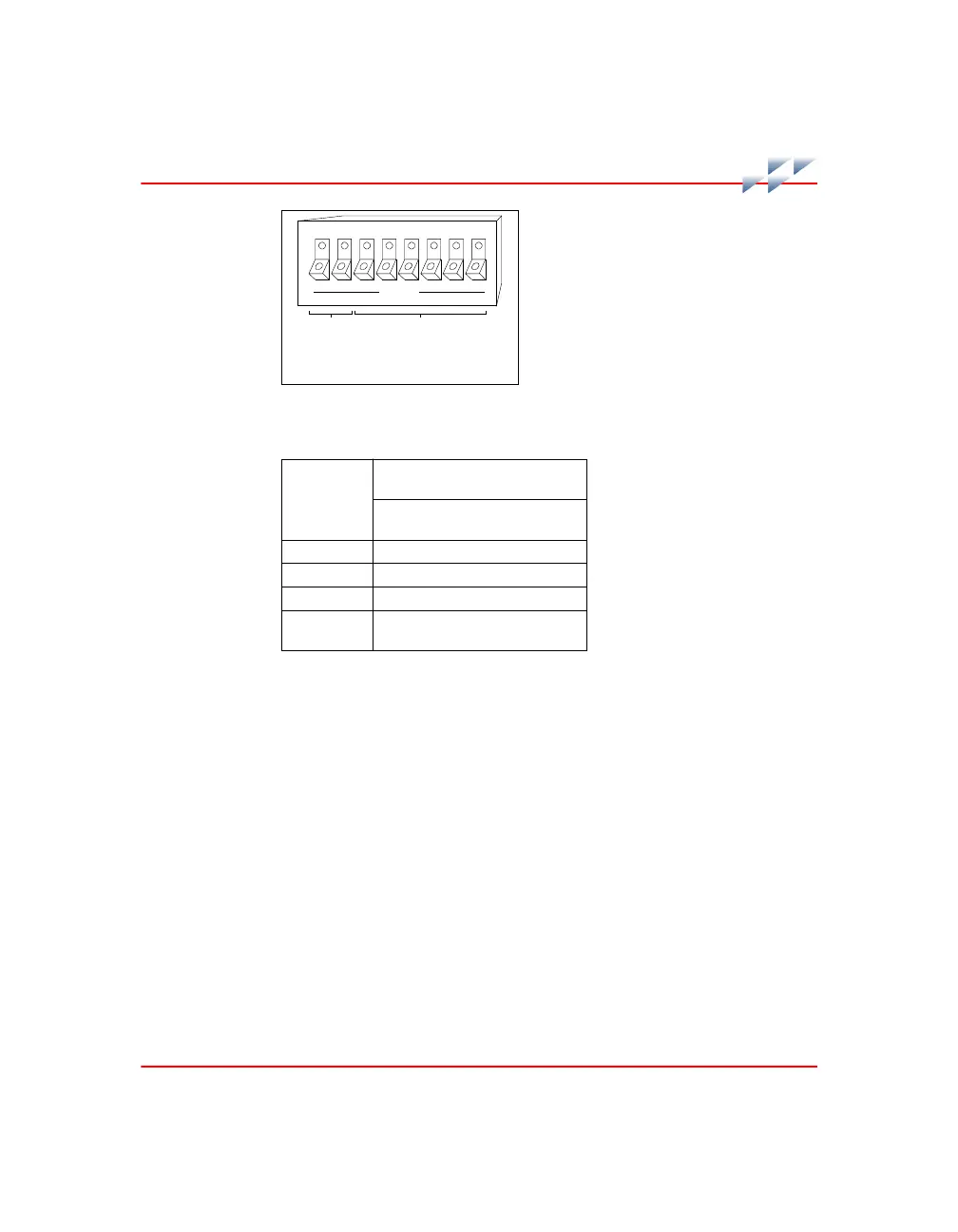

Figure 3-2. S1 Switch
Table 3-1. S amp le A ddr ess S witch Setti ngs (S1)
Address
Example
Switch Position
1,2
(Binary Value)
3
(32)
4
(16)
5
(8)
6
(4)
7
(2)
8
(1)
08 0 0 1 0 0 0
32 1 0 0 0 0 0
63 1 1 1 1 1 1
User setting
NOTES:
1. Switch positions 1 and 2 must be closed.
2. 0 = closed or on, 1 = open or off.
1 2 3 4 5 86 7
OPEN
MUST
REMAIN
CLOSED
I/O
ADDRESS
MSB LSB
T01800A
NOTE: OPEN POSITION = LOGIC 1
