Wiring Connections and Cabling
WBPEEUI240774A0 3 - 7
Cable Connections
The IMASI23 module uses one NTAI06 termination unit for ter-
mination. The NTAI06 requires an NKAS01 or NKAS11 cable to
connect to the IMASI23 module. The cables have a Y configura-
tion with two connectors on one end. Note the labeling of J2
and J3 to insure proper connection of the input signals. Figure
3-5 shows cable connections to the NTAI06 termination unit.

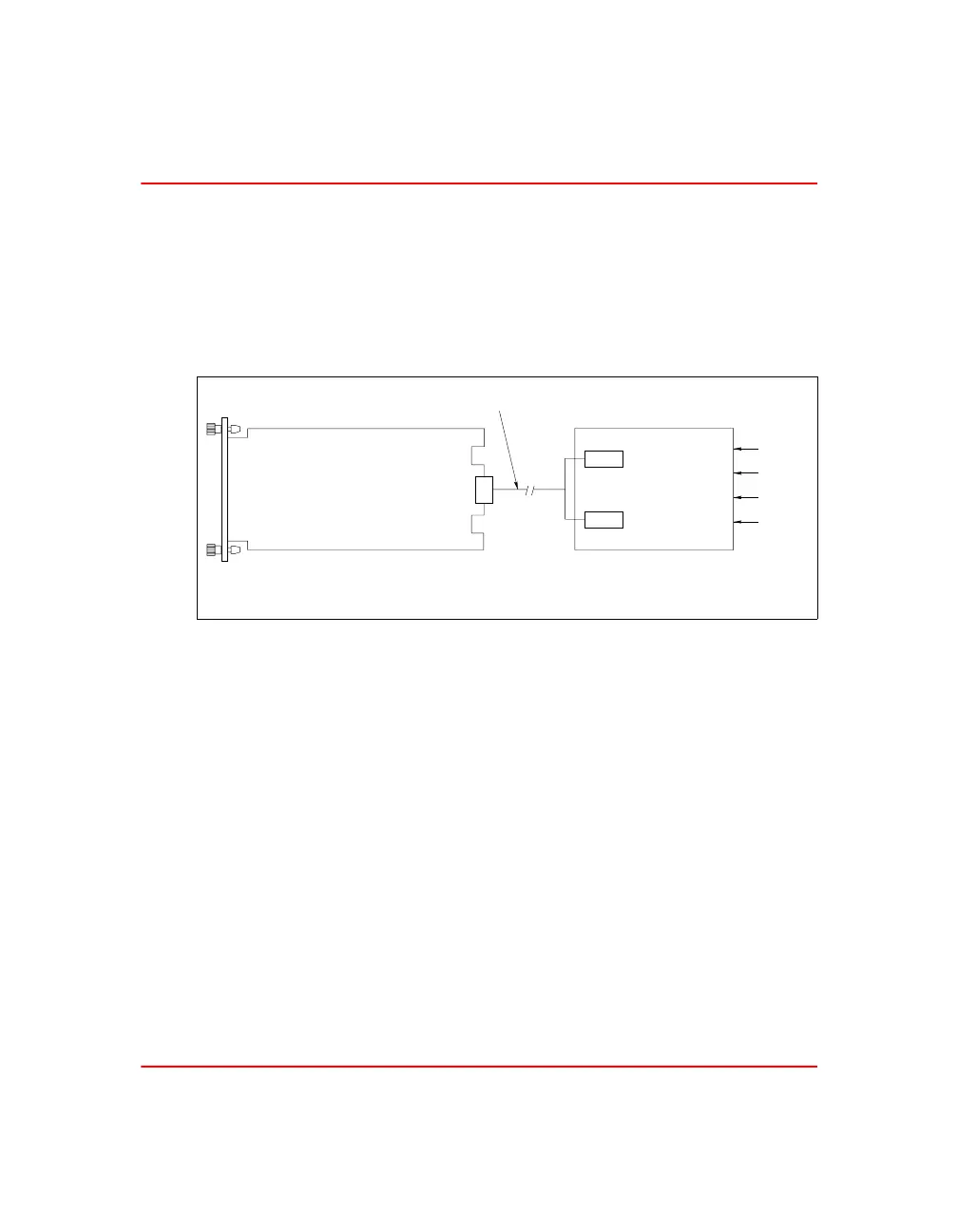

Figure 3-5. Cable Connections
T01066B
P1
P3
J3
P2
J2
P1
J1
P2
NKAS01/11
(NOTE 1)
TERMINATION UNIT
CABLE
NTAI06
CHANNELS 11-16
CHANNELS 1-10
IM A S I23
FIELD
WIRING
NOTE:
1. NKAS01 HAS PVC INSULATION (SPECIFY LENGTH UP TO 200 FT).
NKAS11 HAS NON-PVC INSULATION (SPECIFY LENGTH UP TO 200 FT).
