Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Removing cartridge group
8.5
Page 98
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D

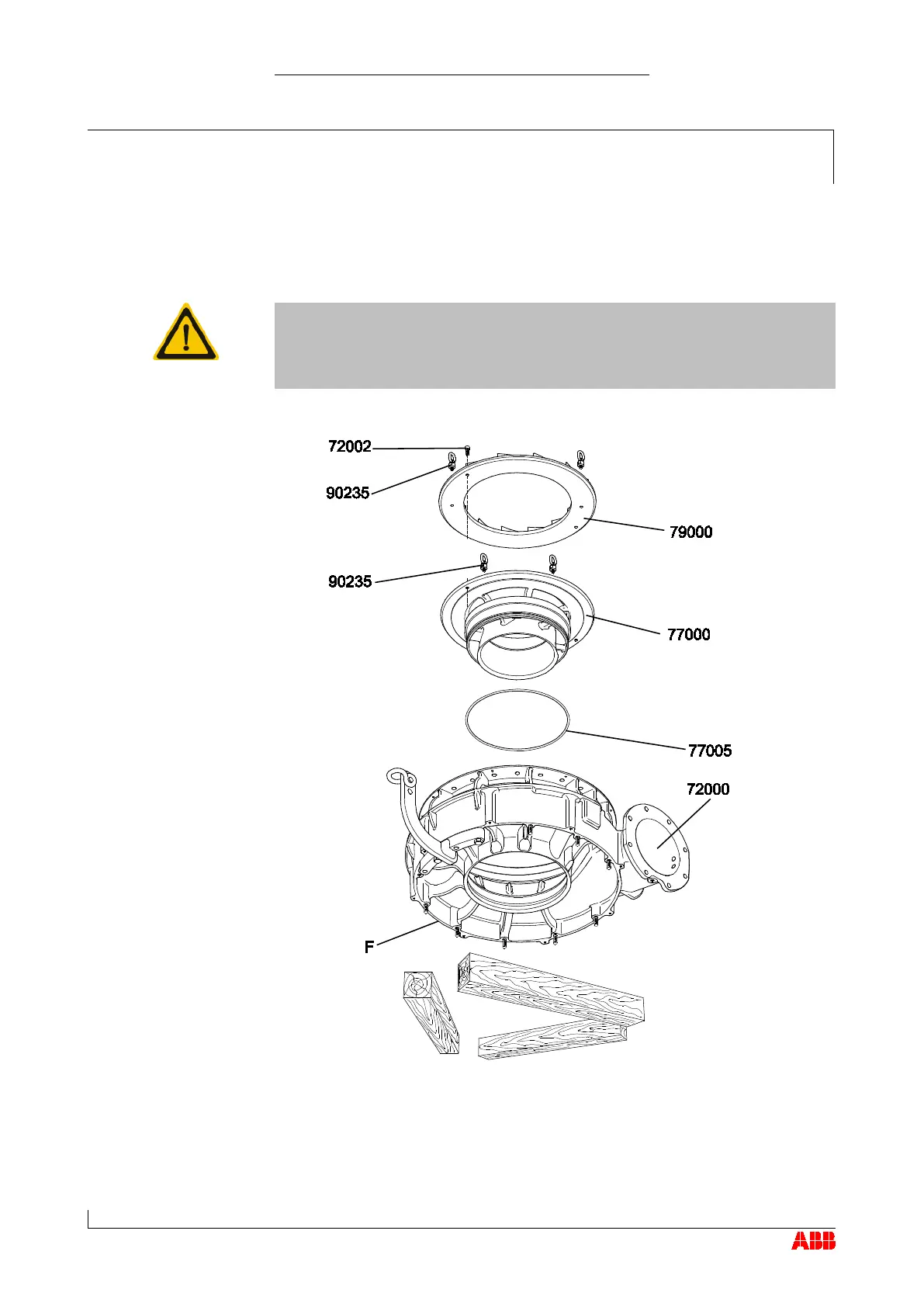

 Turn compressor casing (72000) together with wall insert and diffuser
and put them down with surface (
F
) on underlay.
WARNING
Make sure that the underlay does not slip.
 Allow compressor casing to rest only on surface (
F
).
 Check underlay and adjust if necessary.

Remove screws (72002).
 Remove diffuser (79000) using swivel lifting eyes (90235).
 Remove wall insert (77000) using swivel lifting eyes (90235).
 Remove O-ring (77005) from wall insert.
