ABB T566609 Operating Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8

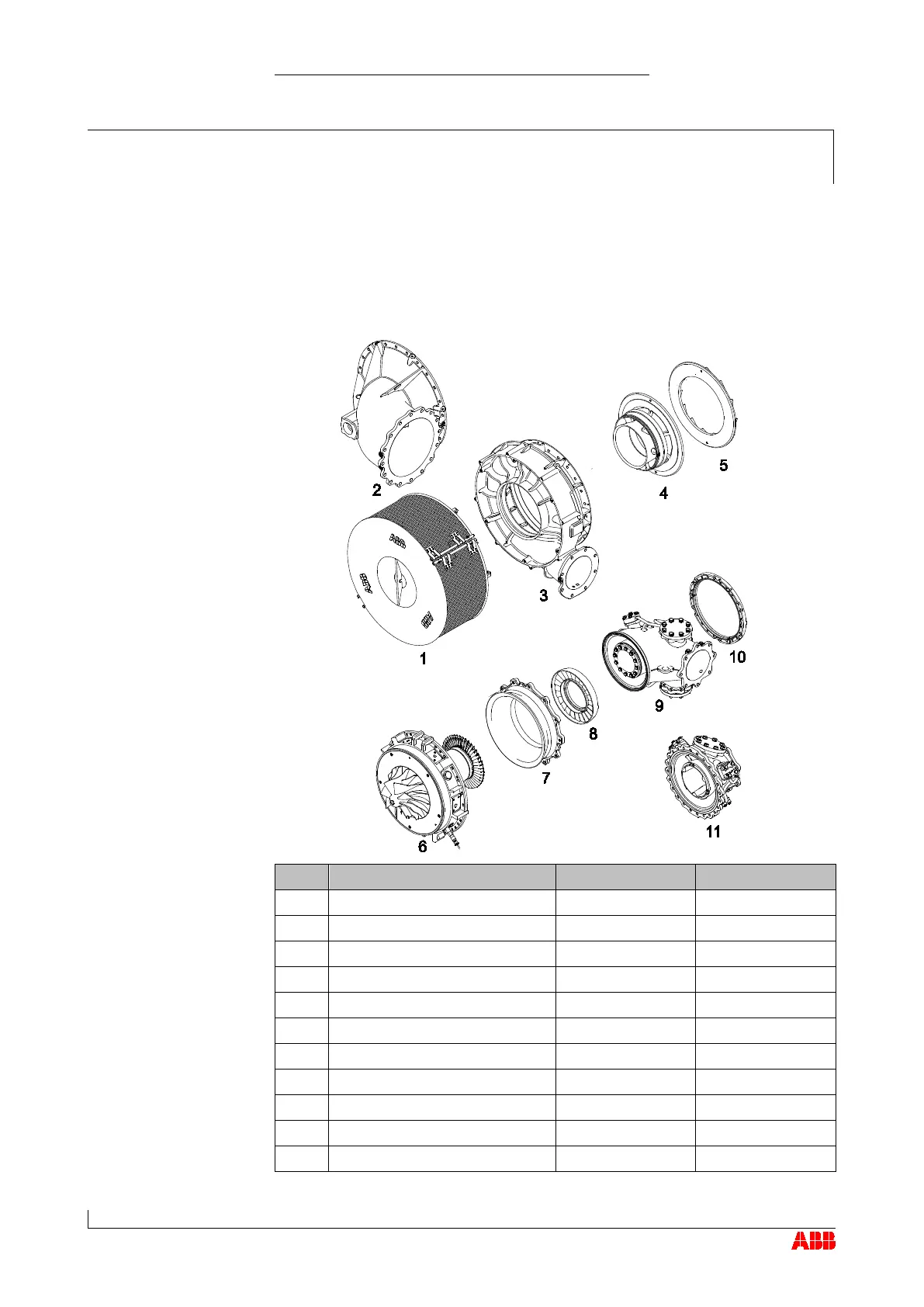

Module weights
8.2
Page 91
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Module weights
8.2
The specified weights of individual parts or assemblies are guides round-
ed off to the next highest value.
Description
TPL67-C
TPL71-C
1
Filter silencer 130 180
2
Radial air suction branch
50
70
3
Compressor casing 180 260
4
Wall insert
40
65
5
Diffuser 19 35
6
Cartridge group
290
460
7
Turbine diffuser 40 60
8
Nozzle ring
10
13
9
Radial gas inlet casing 110 150
10
Segment
7
12
11
Axial gas inlet casing 65 80
8.2
Assemblies
Weights [kg]
