Operation Manual / TPL67-C.. - TPL71-C..

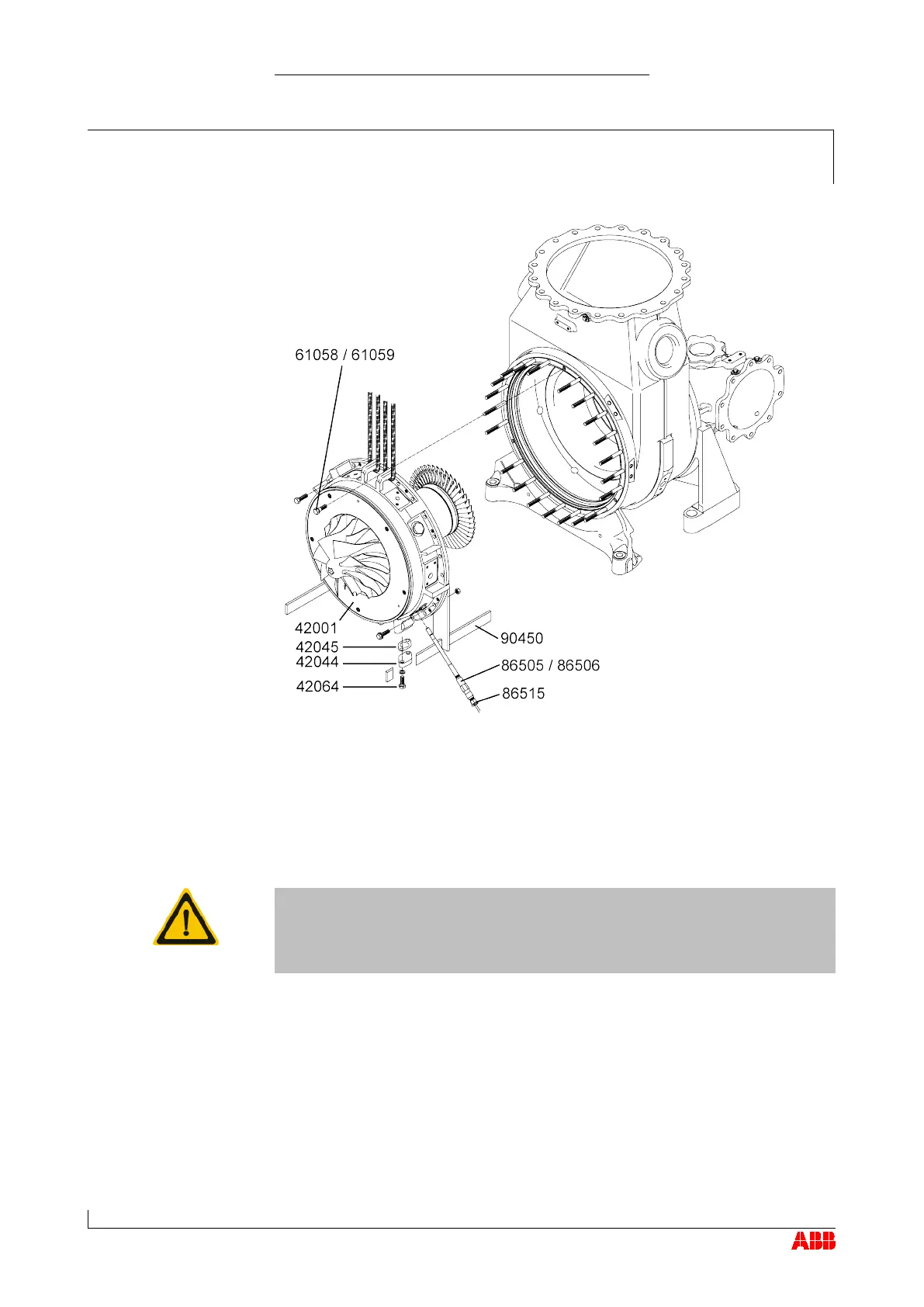

Installing cartridge group
Page 104
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Remove cover from oil connection.
Fit flange (42044) with screws (42064) and new gasket (42045).
Attach one lifting gear each to the two fins of the bearing casing pro-
vided for this purpose.
Remove supports (90450) and carefully insert cartridge group.
If the rotor blades have insufficient or no clearance, the blades and cas-
ing could be damaged.
Check that the blades do not rub on the turbine diffuser by rotating
the rotor.
Uniformly tighten the three screws (61059) with Verbus Ripp® wash-
ers (61058).
Remove the lifting gear.
Screw in the speed sensor (86505) together with the O-ring (86506)
and plug in the cable connector (86515).
