Operation Manual / TPL67-C.. - TPL71-C..
Installing cartridge group
Page 106
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D

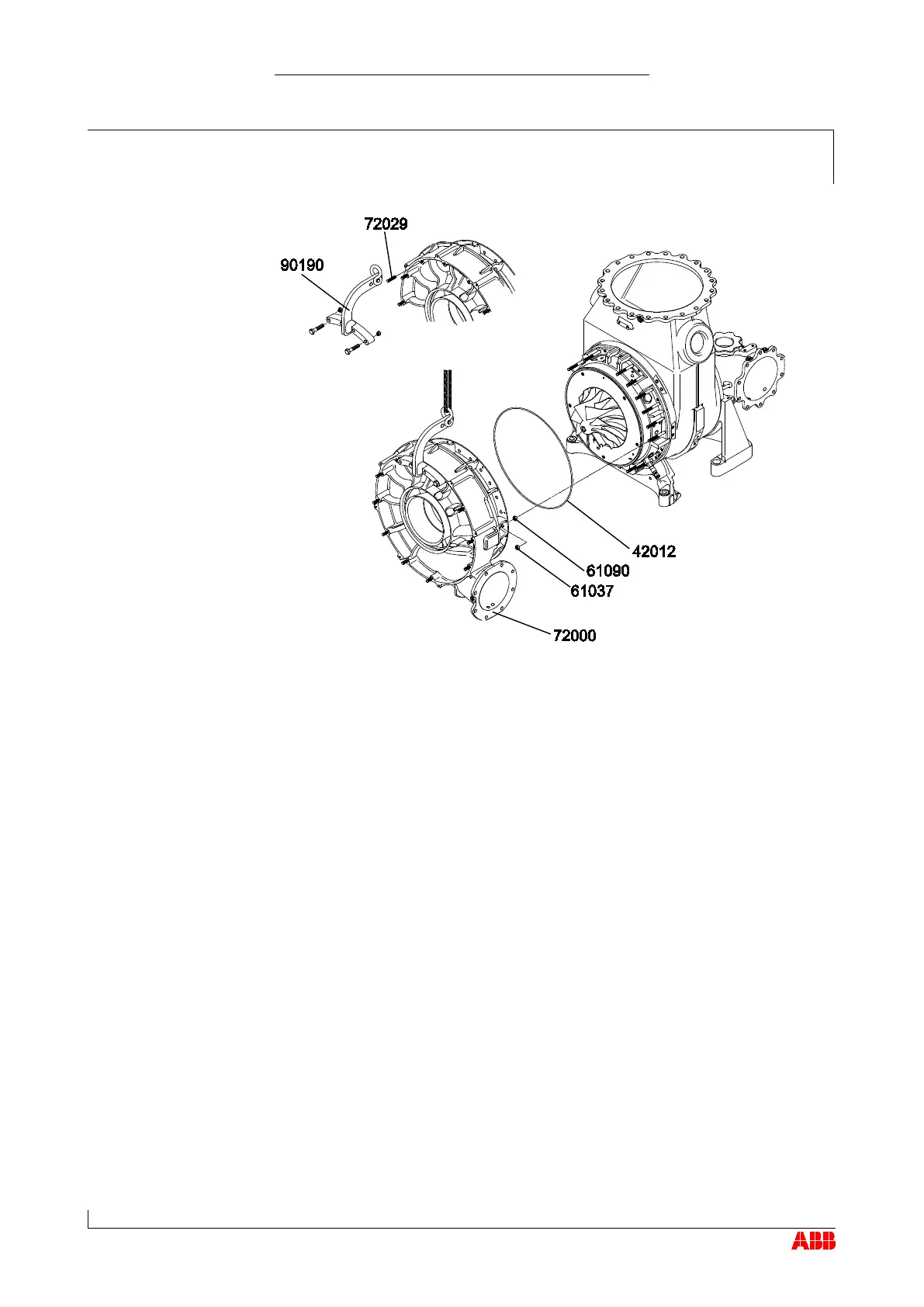

Fit O-ring (42012).
Attach lifting gear to the shackle of the lifting device (90190) and turn
the compressor casing (72000).
Screw three press-off nuts (61090) onto bearing casing studs, equally
distributed around circumference, and screw up to end of thread by
hand.
Push the compressor casing (72000) flush onto the cartridge group
and attach with nuts (61037).
Secure the three press-off nuts (61090) against the compressor casing
(72000) with the appropriate tightening torque (see chapter Table of
tightening torques).
Remove lifting device (90190).
