Operation Manual / TPL67-C.. - TPL71-C..
the filter silencer
Page 54
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D
Fitting the filter silencer
Assemble the insert units (E) by inserting the absorption segments
(81136) into the sheet metal coverings (81137).
Bend sheet metal coverings (81137) back to original shape.
Insert the insert units (E) into slot guides in filter silencer unit (81135).

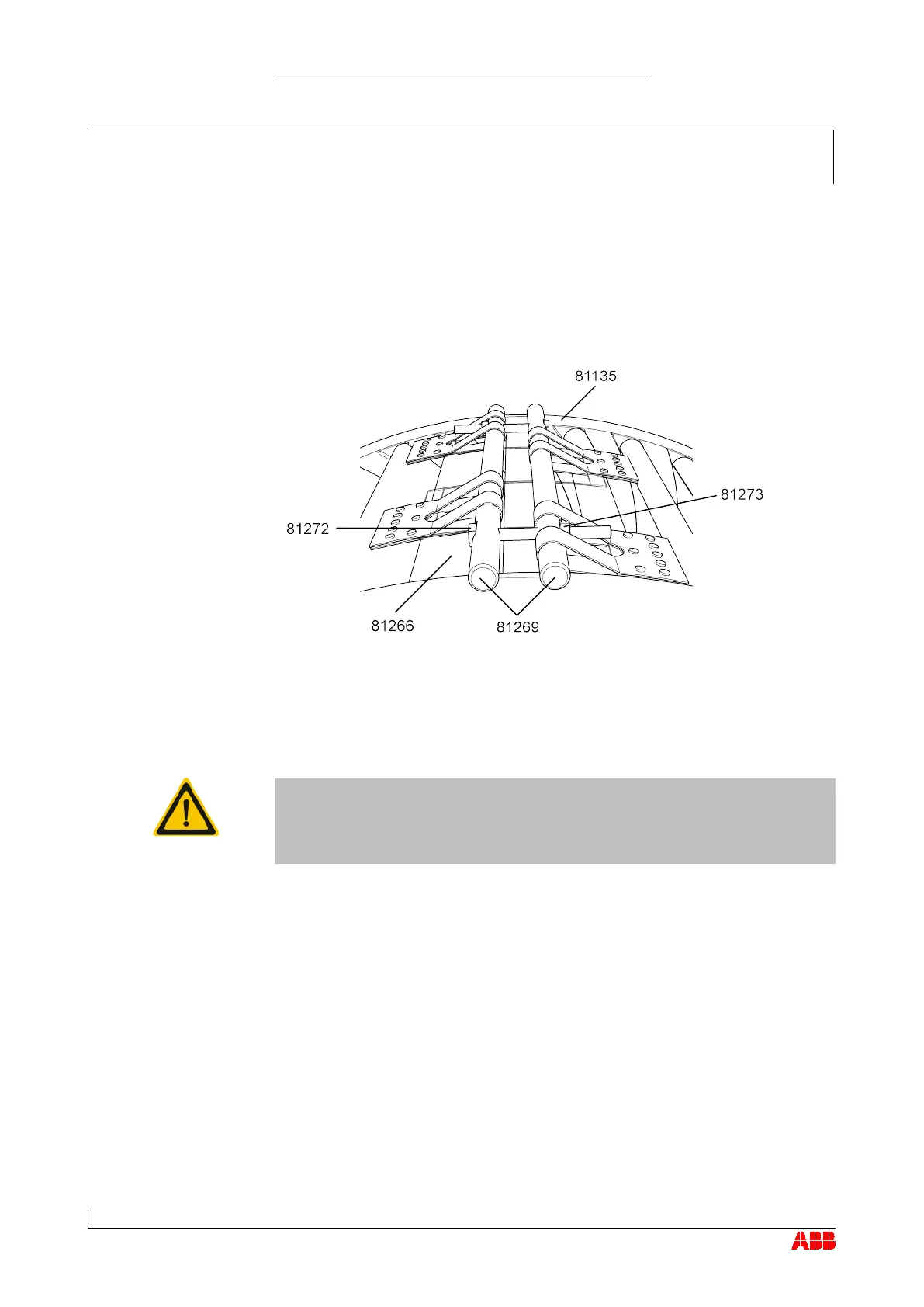

Uniformly place cover grids (81266) in correct position.
Push connecting rods (81269) through lugs of cover grids (81266).
If the connecting rods (81269) are not correctly positioned in their re-
cesses on the filter silencer unit (81135), the cover grid (81266) can
twist and shift. There is then a risk of foreign matter and contamination
getting into the compressor.
