Operation Manual / TPL67-C.. - TPL71-C..
Removing the turbocharger
Page 87
© Copyright 2017 ABB. All rights reserved.
February 2017 HZTL2488_EN Revision D

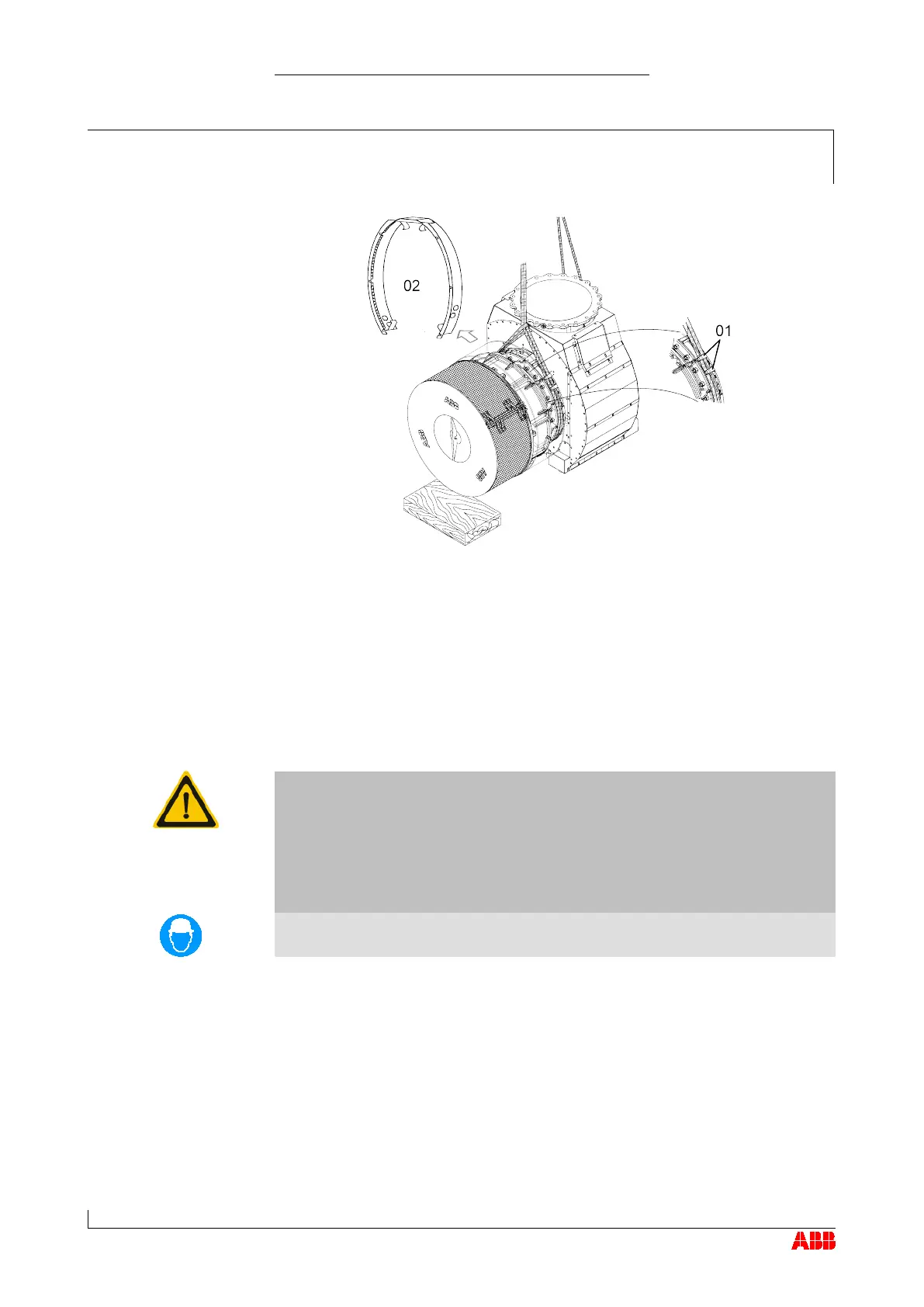

Ribs (01) not in the middle at the top:
Completely remove the bearing casing insulation (02) and place a
sling around the bearing casing.
Loosen the fixing screws at the foot.
Lift the turbocharger off the engine and set it down to one side.
If support for the turbocharger is not provided or is inadequate, the tur-
bocharger could tip over during installation or removal and cause a se-
rious or even fatal injury.
Support the turbocharger at a suitable point.
If possible secure it using lifting gear.
Wear safety helmet.
Cover the oil connection.
