TERRA DC WALLBOX
2022-11-15 9/ 20
2.2. MID certified Charger identification
The nameplate contains all information relating to the Deutsche Messe EV regulation for the
measuring device calibration law. This is a field-installable upgrade. To recognize if a charger is
compliance to MID Directive, Check the charger label. The product compliance is indicated by the
info showed in the Highlighted box
The Label reports all the necessary info to be compliance to 2014/32/EU MID directive.

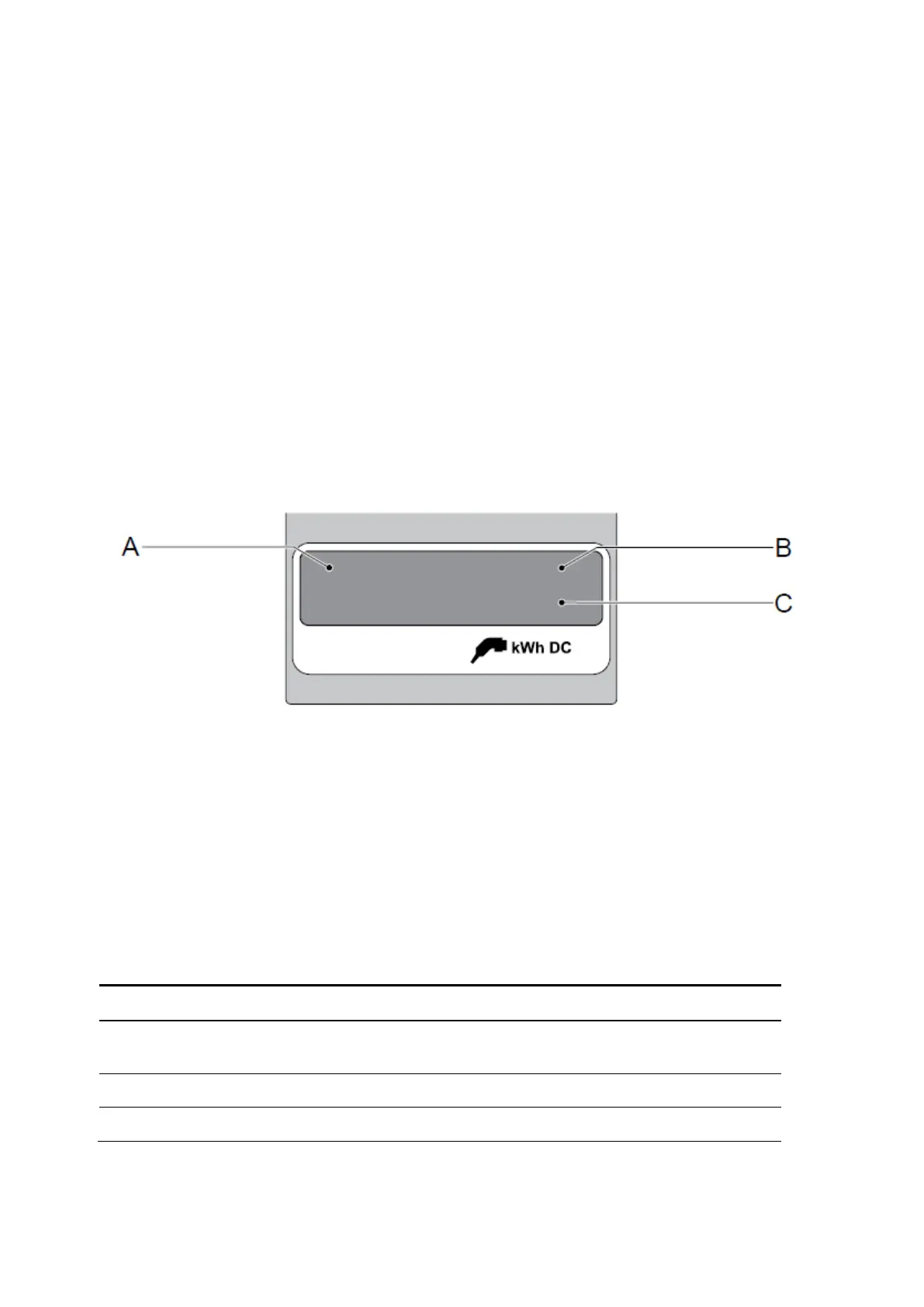

2.3. Energy Meter Readout:
A. Time (hh:mm:ss)
B. Date (YY-MM-DD)
C. Delivered DC power (kWh)
• Charger registration to the Federal authority:
o https://www.bundesnetzagentur.de/DE/Sachgebiete/ElektrizitaetundGas/Unternehm
en_Institutionen/HandelundVertrieb/Ladesaeulen/Anzeige_Ladepunkte_node.html
• Section 31-33 MessEG :
o MessEG is published on: https://www.gesetze-im-internet.de/messeg/index.html
(directly to standard link)
2.4. Charger configurations
Terra DC Wallbox Charger supports the following DC charging standards:
Indicator
Description
CJ
One CCS and one CHAdeMO outlets up to 60 A / 22.5 kW;
No simultaneous charging possible
C
One CCS outlet with output current/power; 60 A / 22,5 kW
J
One CHAdeMO outlet with output current/power; 60 A / 22,5 kW
