ABB TPL-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Di
sassembly and assembly
8
Removing cartridge group
8.5
Page 87
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C


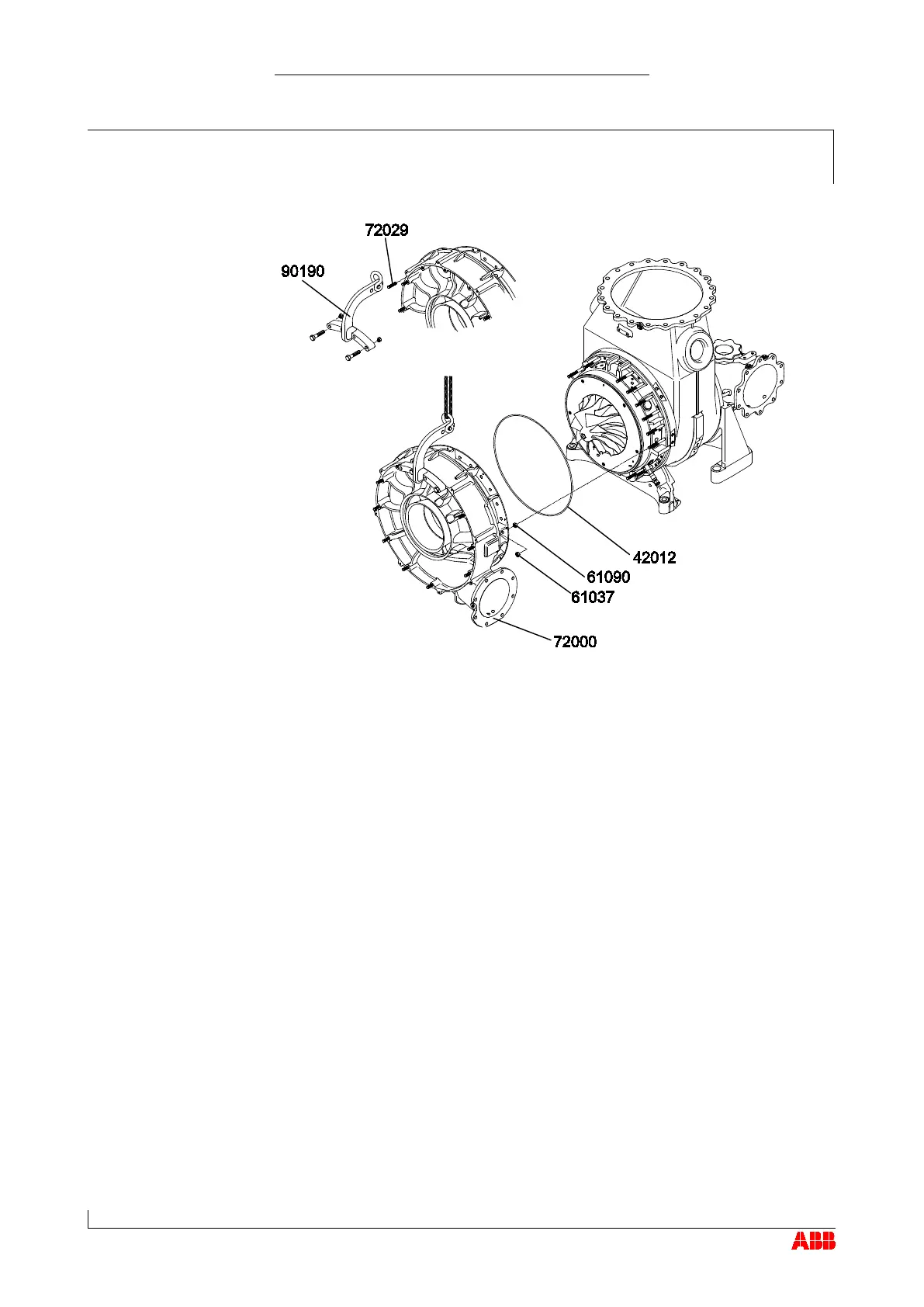

Remove three studs (72029) at top.
 Attach lifting device (90190) to compressor casing (72000), then fas-
ten and secure it to crane using lifting gear.
 Loosen and remove the nuts (61037).
 Uniformly press off compressor casing (72000) using three press-off
nuts (61090) fitted on bearing casing side.
 Slightly lift compressor casing (72000) and withdraw it.
 Remove the O-ring (42012).
