ABB TPL-C Series User Manual

Operation Manual / TPL67-C.. - TPL71-C..
Disassembly and assembly
8
Removing cartridge group
8.5
Page 88
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C

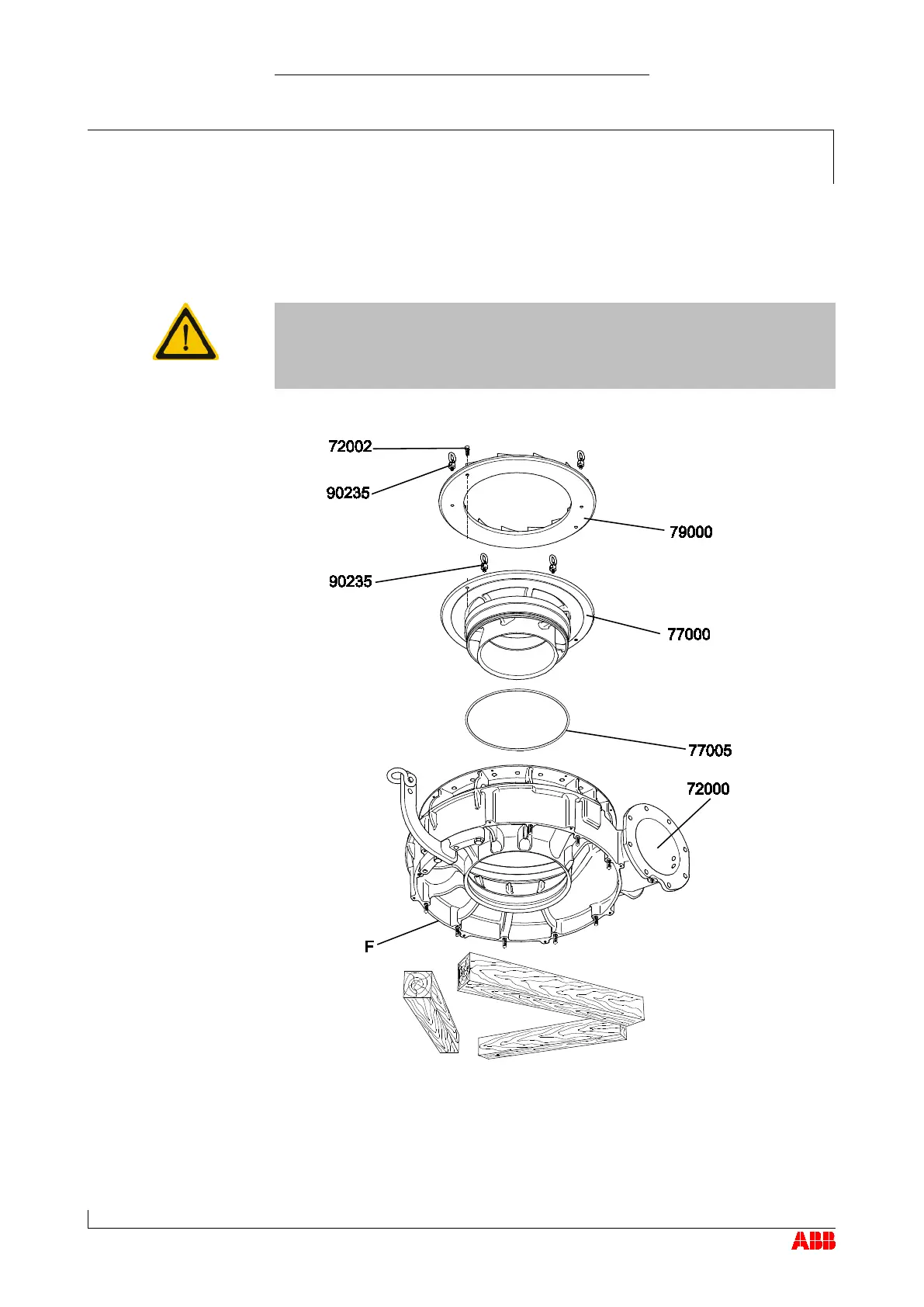

 Turn compressor casing (72000) together with wall insert and diffuser
and set them down with surface (
F
) on underlay.
WARNING
Make sure that the underlay does not shift.
 Allow compressor casing to rest only on surface (
F
).
 Check the underlay and adjust it if necessary.

Remove the screws (72002).
 Remove diffuser (79000) using swivel lifting eyes (90235).
 Remove wall insert (77000) using swivel lifting eyes (90235).
 Remove O-ring (77005) from wall insert.
