Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

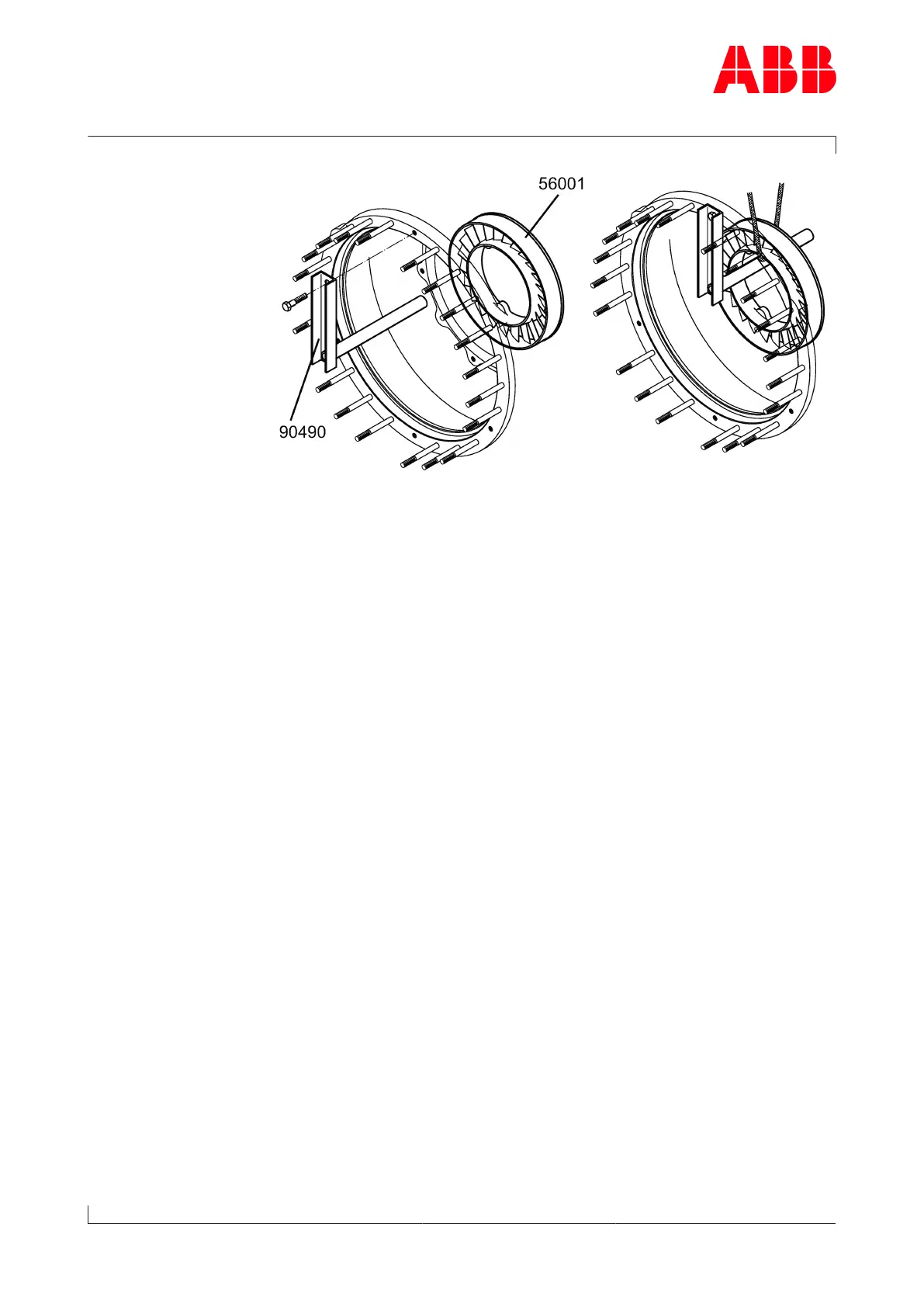

u Fasten the holder (90490) to the gas outlet casing.
u Pull the nozzle ring (56001) in the forward direction, fasten it to the
lifting gear and remove it.
Installing the turbine diffuser and nozzle ring
u Install the nozzle ring and turbine diffuser in the reverse order of re-
moval.
u Coat the screw threads with high-temperature grease.
u Align nozzle ring with holes or cams in gas inlet casing.
Page 99 / 136
