Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
9 Taking out of operation at short notice / 9.2 Locking the rotor
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
ð In the case of engines with three or four turbochargers, the balancing
screws should be removed from the compressor wheel concerned.
ð In the case of engines with one or two turbochargers, eight screws
are enough to securely fasten the locking flange.

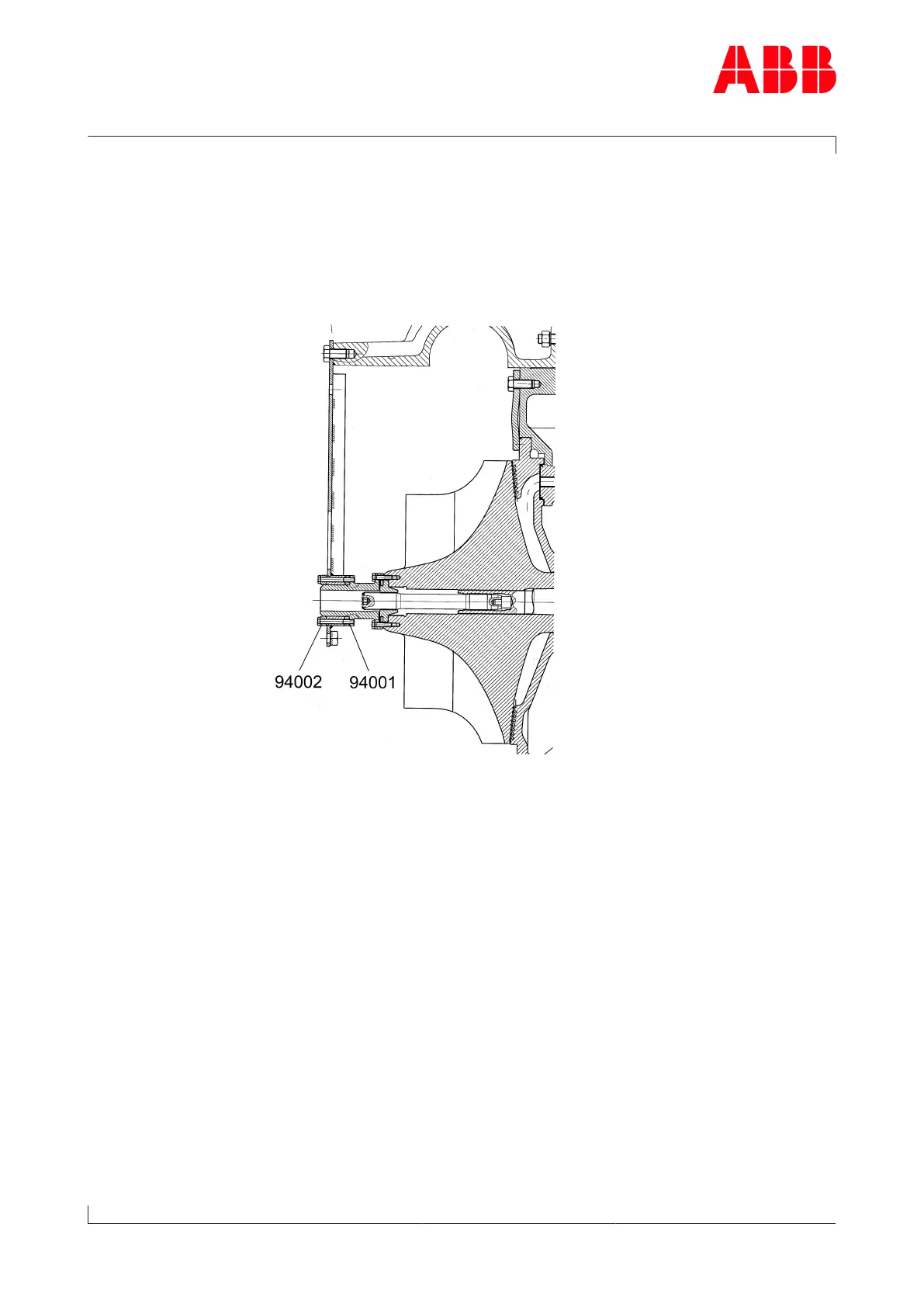

Locking rotor
Compressor type CV10
Page 119 / 136
