Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
9 Taking out of operation at short notice / 9.2 Locking the rotor
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018
Compressor type CV 20
CAUTION
Make sure all components are clean and free from grease.

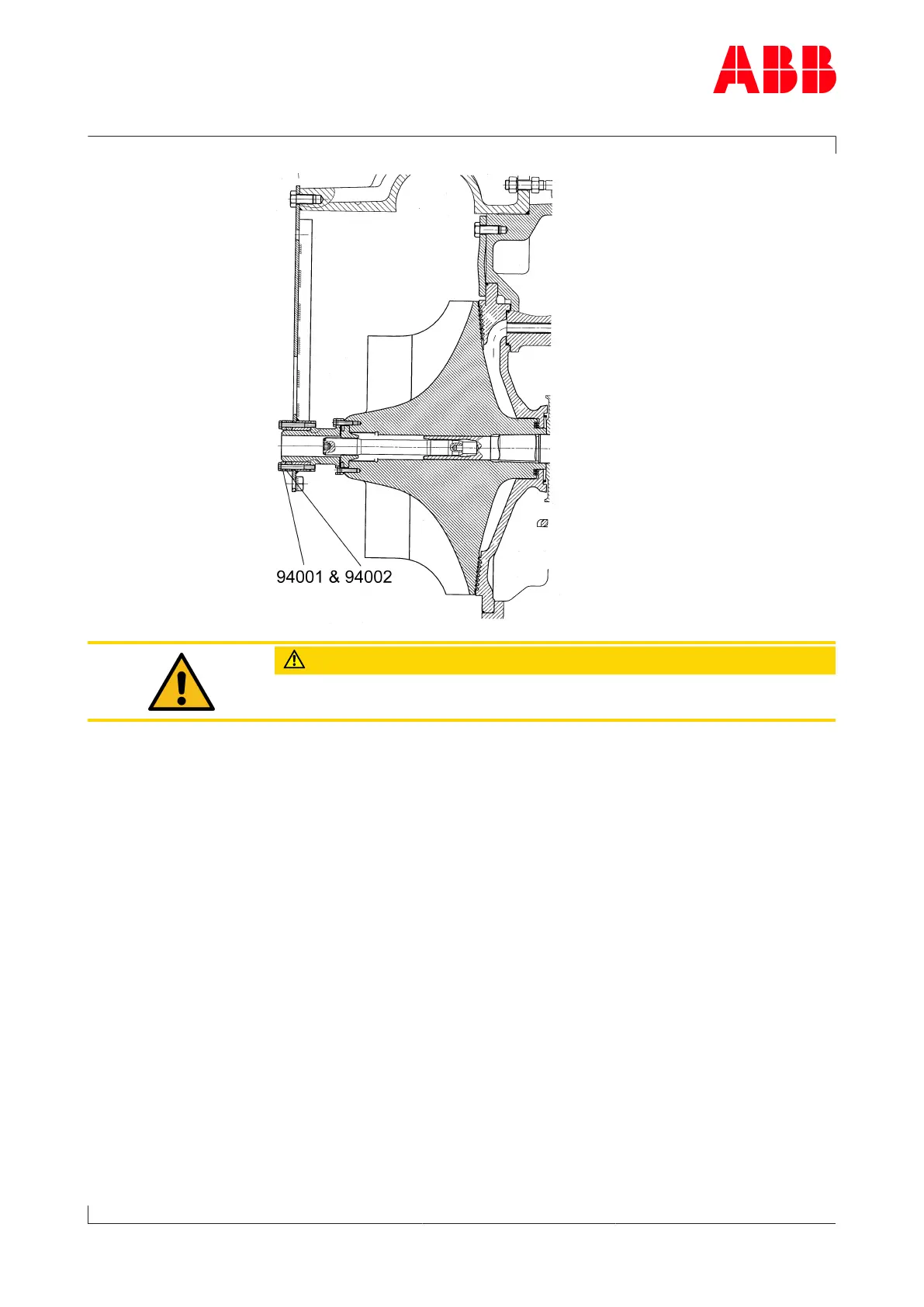

u Push intermediate rings (94001 and/or 94002) and assembly-disas-
sembly device (90020) onto locking flange (94003) in correct order.
u Now push on remaining intermediate rings (94001 and/or 94002).
u Tighten intermediate rings, assembly-disassembly device (90020)
and locking flange (94003) using screws (94006) according to values
shown in preceding Table of tightening torques.
u Now tighten assembly-disassembly device to compressor casing us-
ing nuts (74027) and studs according to values shown in preceding
Table of tightening torques.
