Assembly Instructions / TPR56FV.. - TPR61FV..
4 Installing the turbocharger / 4.1 Installing the VTG control system
© Copyright 2018 ABB. All rights reserved. HZTL455311P0033_EN Revision B May 2018
4.1 Installing the VTG control system
WARNING
Installation location of the VTG control system
The control system is installed in a terminal box.
u It is essential to follow the additional specifications and instructions of
the enginebuilder.

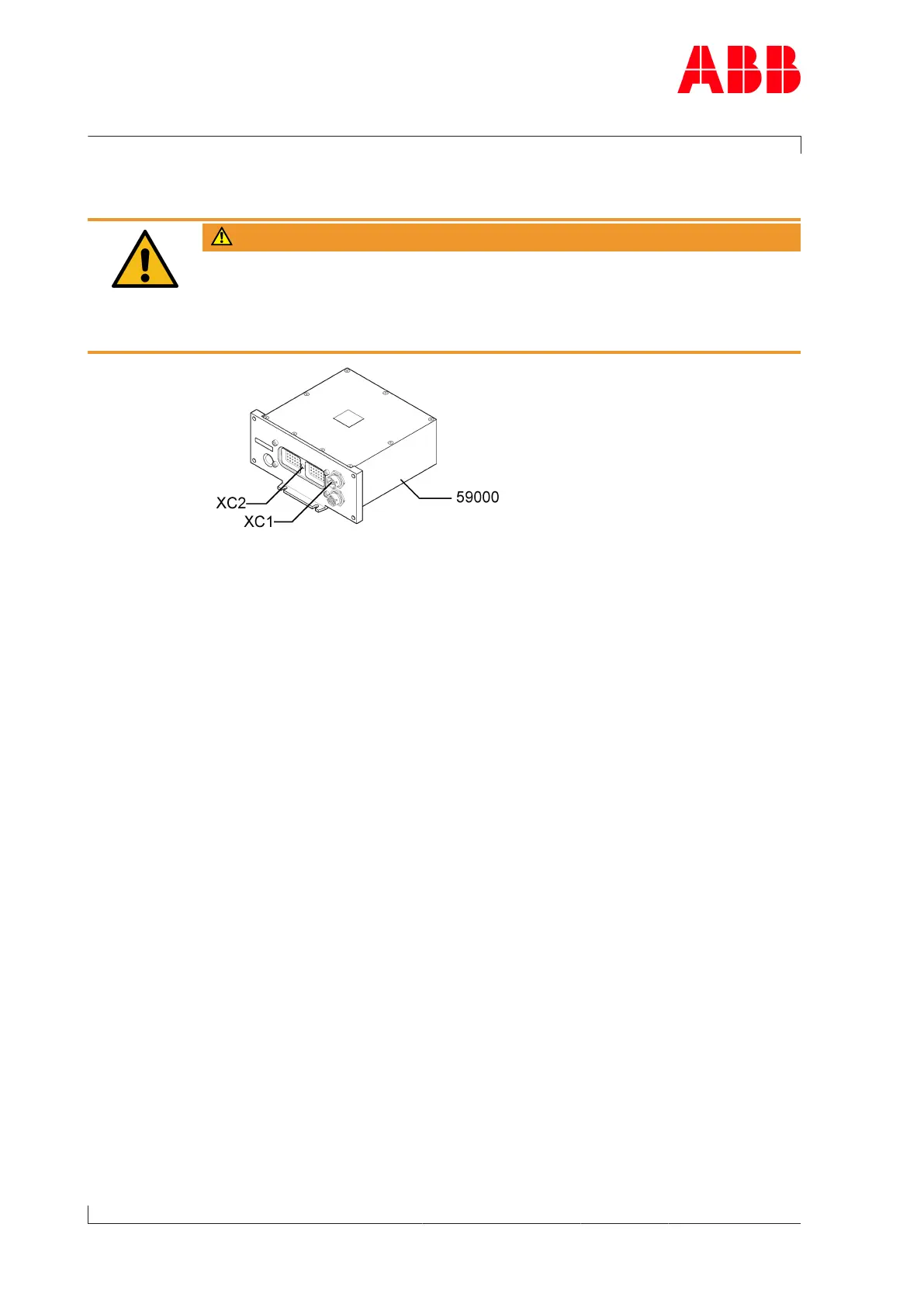

Fig.3: Installation of the VTG control system
u Secure the control system using the relevant screws in the terminal box.
u Connect plug XC2 to the control system and secure with the screw.
u Secure any other connection and grounding cables as per the specifications.
u Connect power supply plug XC1 to the control system.
