Assembly Instructions / TPR56FV.. - TPR61FV..
4 Installing the turbocharger / 4.2 Completion work, if required
© Copyright 2018 ABB. All rights reserved. HZTL455311P0033_EN Revision B May 2018

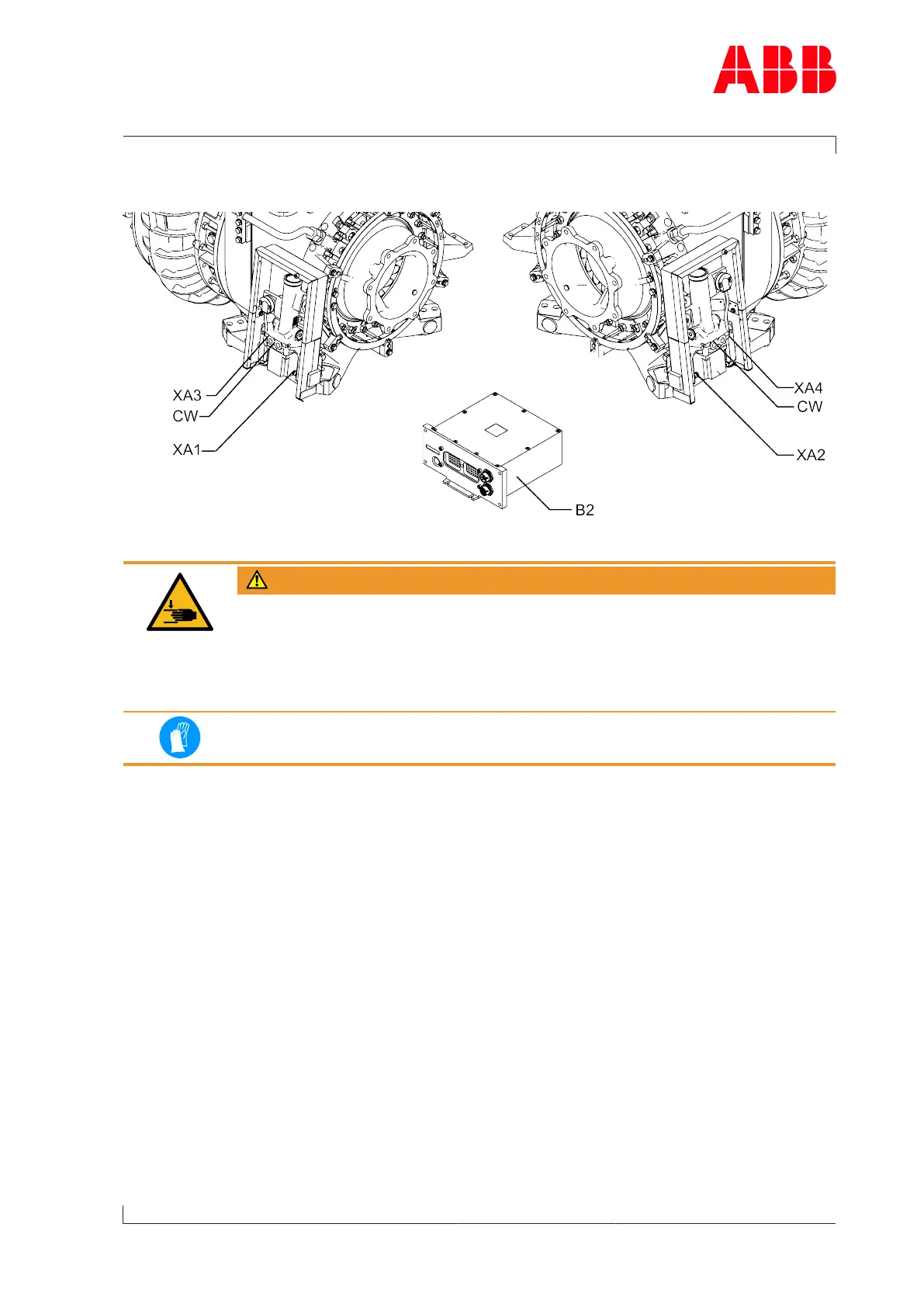

4.1.1 Connecting the VTG control system
WARNING
Crushing hazard
Unintentional adjustment of the VTG mechanics can lead to crushing injur-
ies.
u Make sure that the control system (B2) is disconnected from the power
supply before disassembly
Wear safety gloves to protect against mechanical hazards.
w If the plugs are not inserted correctly or interchanged, the operation of the VTG mechan-
ics is not possible.
u Connect plug XA3 or XA4 to the actuator.
u Connect plug XA1 or XA2 to the actuator.
u Fit the cooling water connections (CW) according to instructions of enginebuilder.
4.2 Completion work, if required
u Attach all gas, air and oil pipes according to the instructions of the enginebuilder.
