Operation Manual / TPS44-F.. - TPS61-F..
Disassembling and assembling
turbocharger
Page 104
April 2015 HZTL2412_EN Revision E
If two turbochargers are mounted on an engine, one with a left-hand
and one with a right-hand oil inlet, a pin can be fitted in the bracket as a
precaution against incorrect positioning. This pin (B) locates in a
correspponing groove in the foot of the bearing casing.

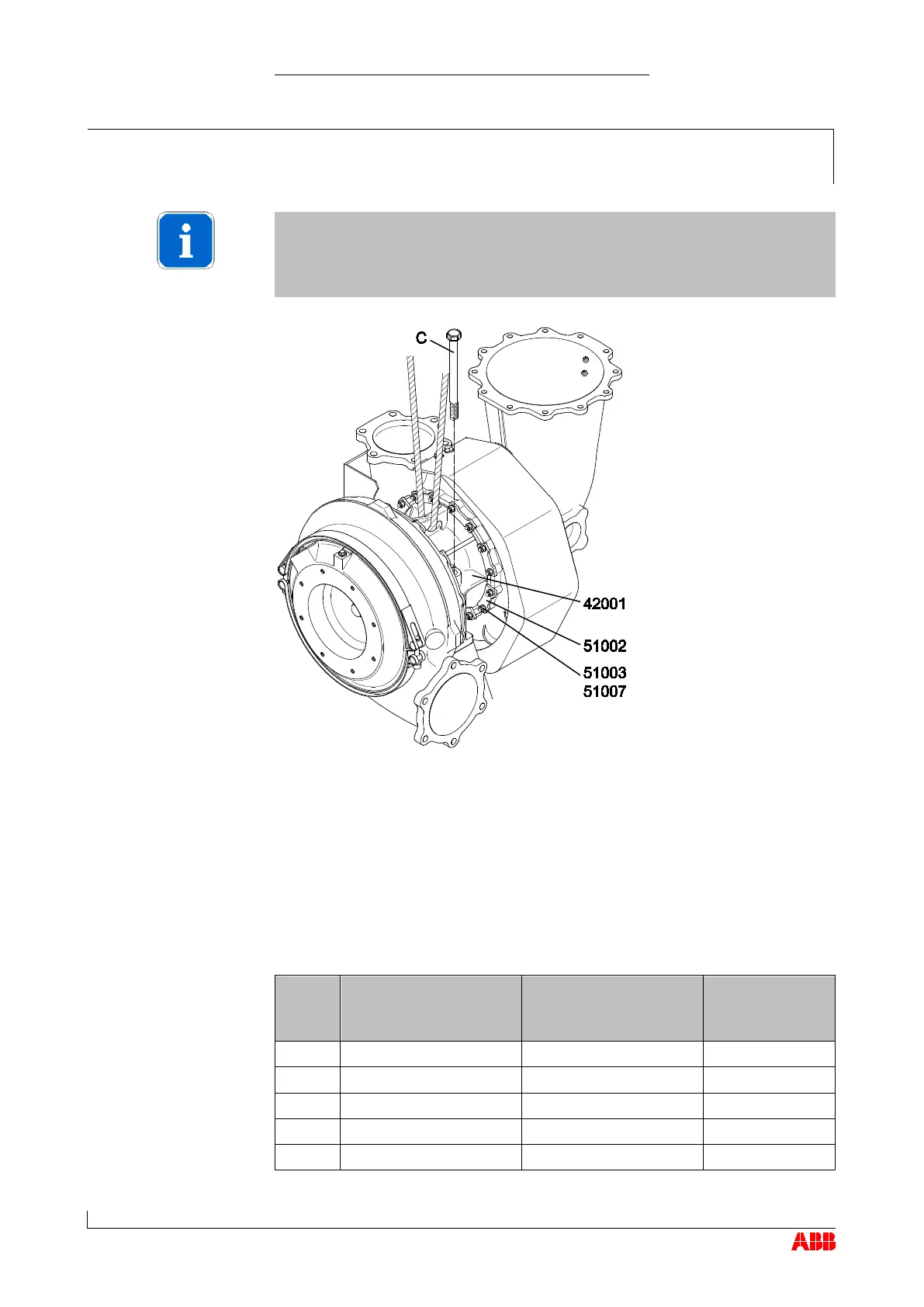

Fasten the cartridge group using fastening strips (51002), Verbus
Ripp® washers (51003) and nuts (51007) (also see the chapter
entitled Table of tightening torques).
Fasten the bearing casing (42001) using the fixing screws (C).
Tighten the fixing screws (C) to the torques listed in the following table.
**) For the assembly of the turbocharger on the engine support, the
threads of the screws and screw heads must be lightly oiled (assumed
coefficient of friction µ = 0.12 for the tightening torque).
Hole in the bearing
casing
[mm]
Tightening
torques [Nm] **)
TPS44 Ø 17 M16 230
TPS48 Ø 17 M16 230
TPS57 Ø 21 M20 455
© Copyright 2015 ABB. All rights reserved.
