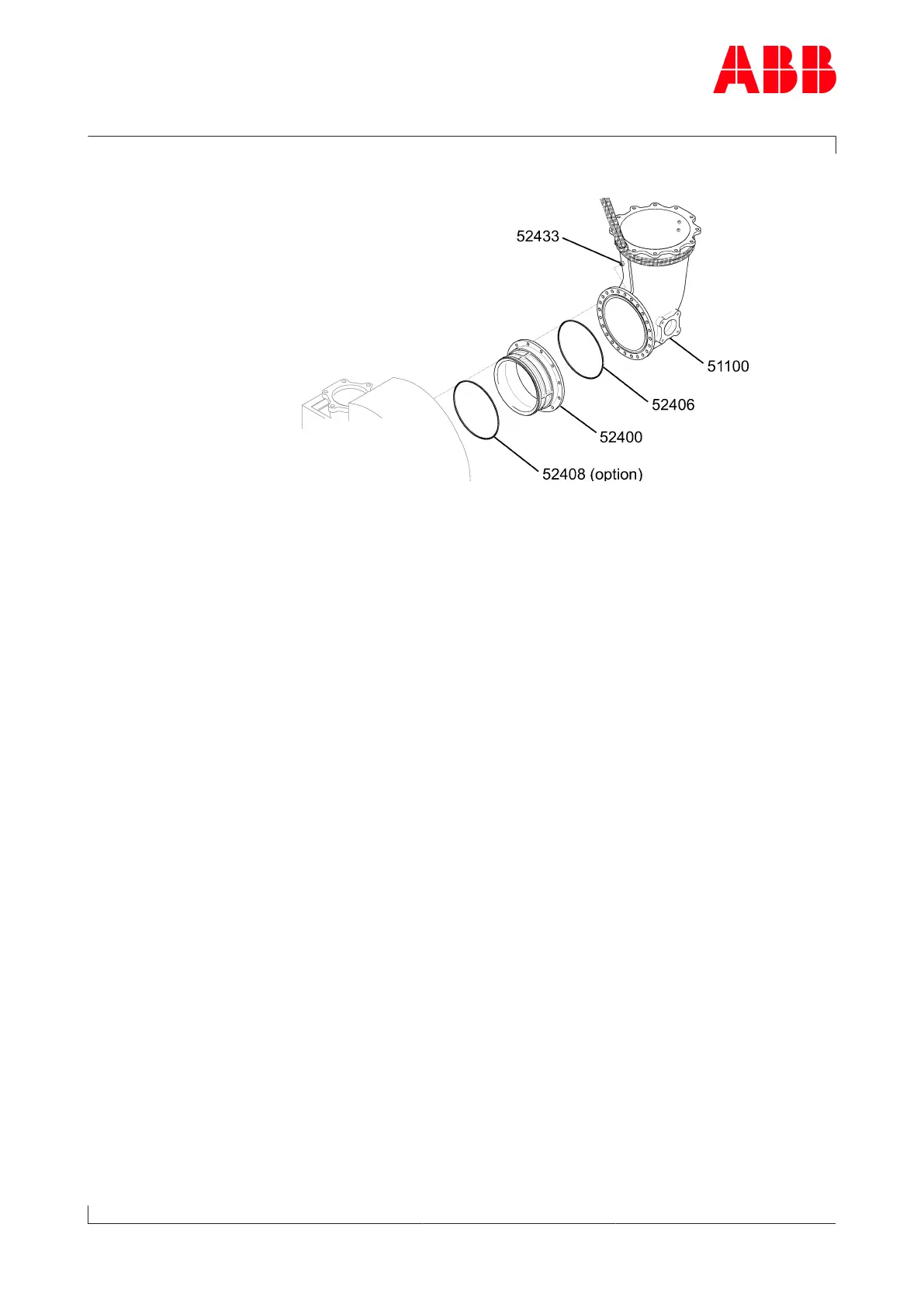

Fitting the gas outlet flange and gas outlet manifold
u If provided, fit the C-ring(52408).
u Fit the gas outlet flange(52400).
u For gas outlet manifolds(51100) from ABB:
always replace the gasket(52406)(see the chapter entitled Spare
parts).
u Apply high-temperature grease to contacting surfaces and threads.
u Fit the turbine casing using the nuts(52433) while observing tighten-
ing torques specified in the table of tightening torques.
If provided
u Fasten the insulation.
u Attach pipes in accordance with the enginebuilder's instructions.
