ABB TPS44-F Series - Table of Tightening Torques

Operation Manual / TPS44-F.. - TPS61-F..
Disasse
mbly and assembly
8
Table of tightening torques
8.6
Page 113
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Table of tightening torques
8.6

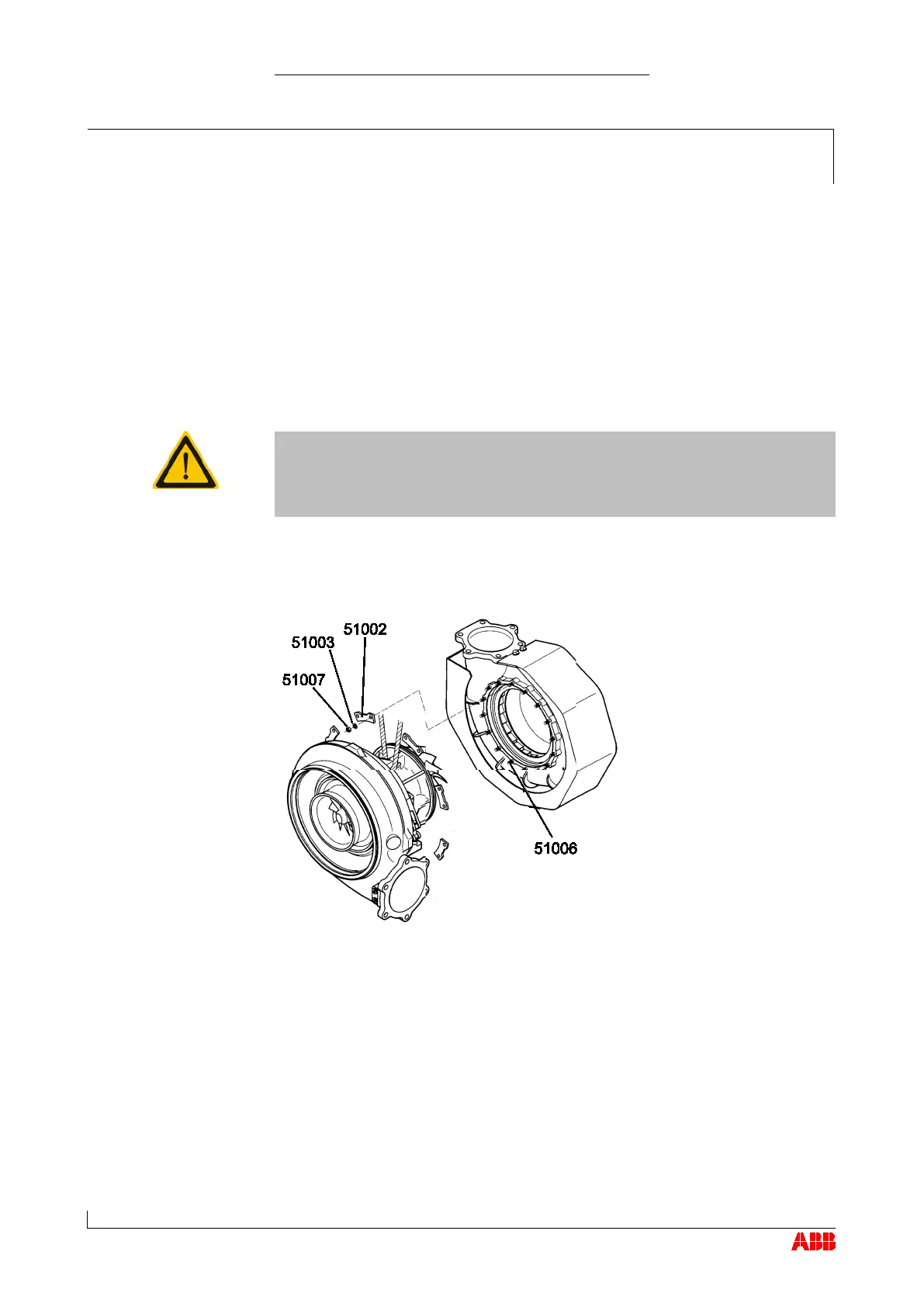

The following tightening torques must be observed for the specified screw
connections:
Position
Part number
TPS44
TPS48
TPS52
TPS57
TPS61
1 72020 60 60 60 60 60
2
42008
6
10
10
20
20
5 52433 20 20 40 65 65
6
51007
25
25
45
75
75
9 72011 35 35 70 105 170
10
86505
15
15
15
15
15
8.6
Tightening torques [Nm]
