10.15 Turning the turbocharger

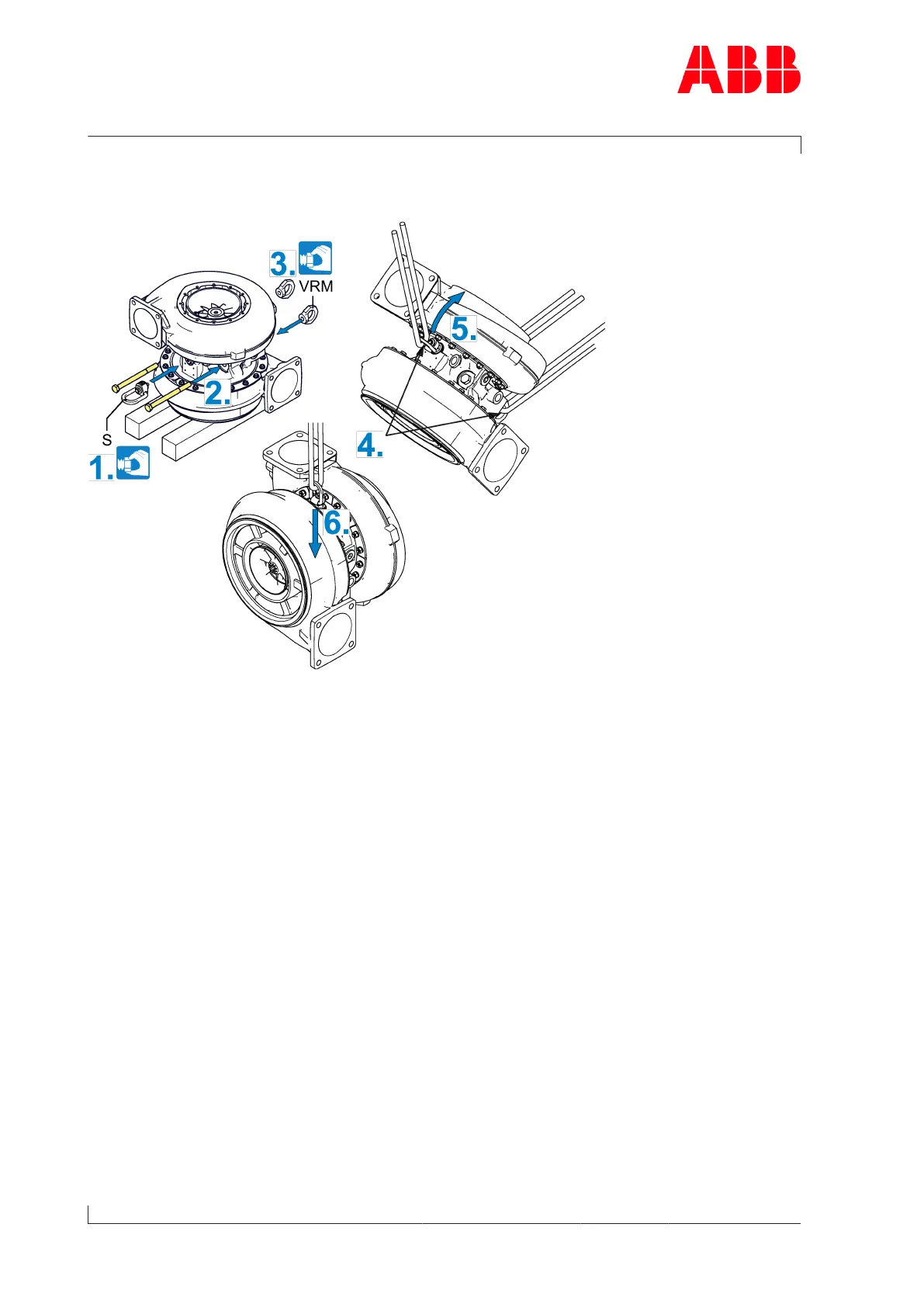

Fig.43: Rotating the turbocharger
1. Fit swivel lifting eye(S).
2. Insert screws from the service support.
3. Fit ring nuts(VRM).
4. Attach lifting gear.
5. Elevate and rotate the turbocharger.
6. Place the turbocharger on a soft underlay.
u Measure: Radial clearances N and R.
