ABB TPS52-H33 - Table 47: Spare Parts - Rotor and Bearing Parts

Operation Manual / TPS44-H.. - TPS52-H..
14 Spare parts / 14.3 Spare part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

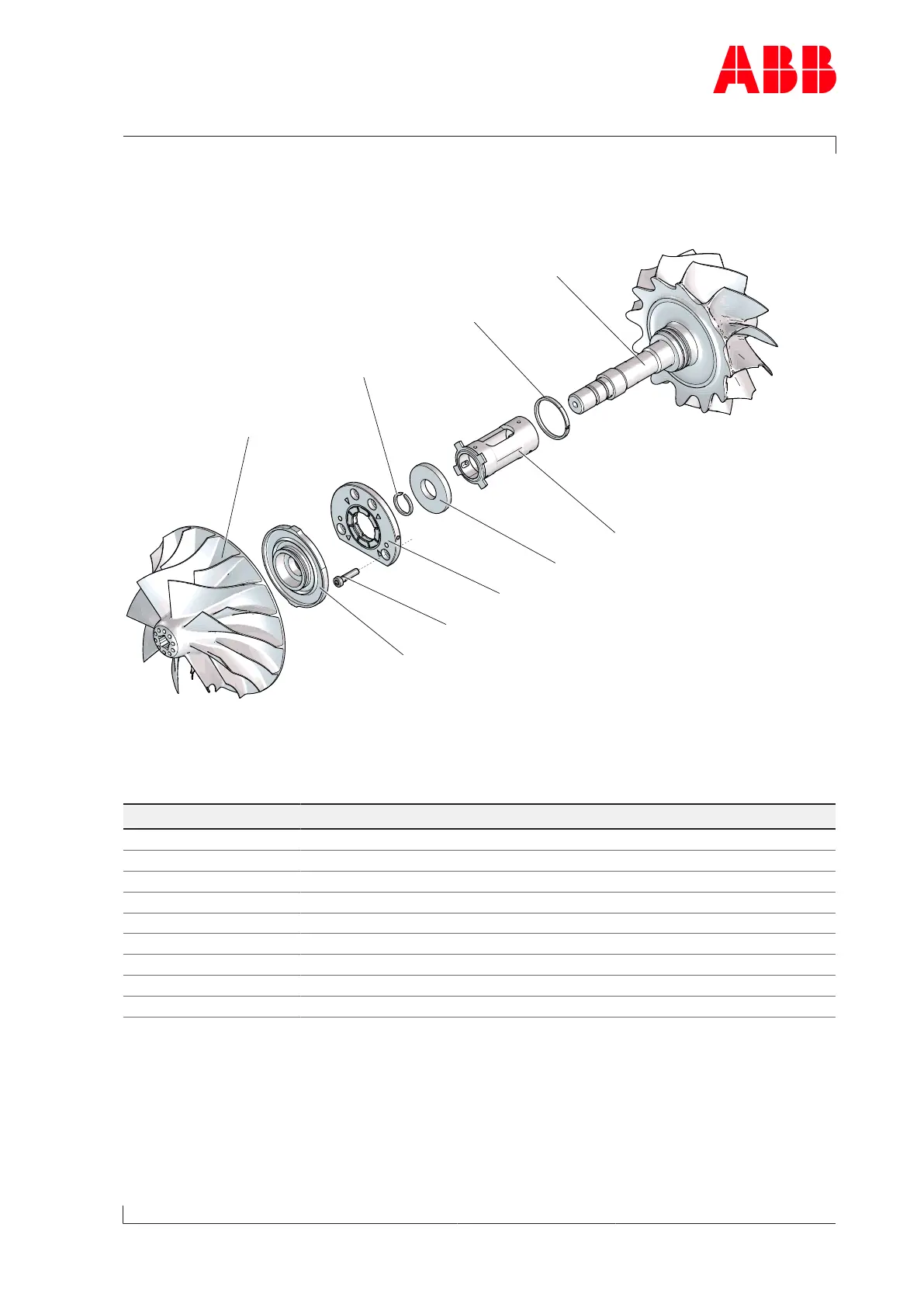

Rotor & Bearing parts
21000
21002*
32186*
32103*
32167*
32104*
42002*
32109*
25000
* = Available within the spare part set HZTL443462 Mod. A
Part no. Designation
21000 Turbine
21002* Piston ring
25000 Compressor wheel
32103* Thrust ring
32104* Thrust bearing
32109* Sealing disc
32167* Snap ring
32186* Plain bearing bush
42002* Socket screw
Table47: Spare parts - Rotor and Bearing parts
Page 101 / 111
