ABB TPS52-H33 - Turning the Turbocharger; Fig. 43: Rotating the Turbocharger

Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.15 Turning the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.15 Turning the turbocharger

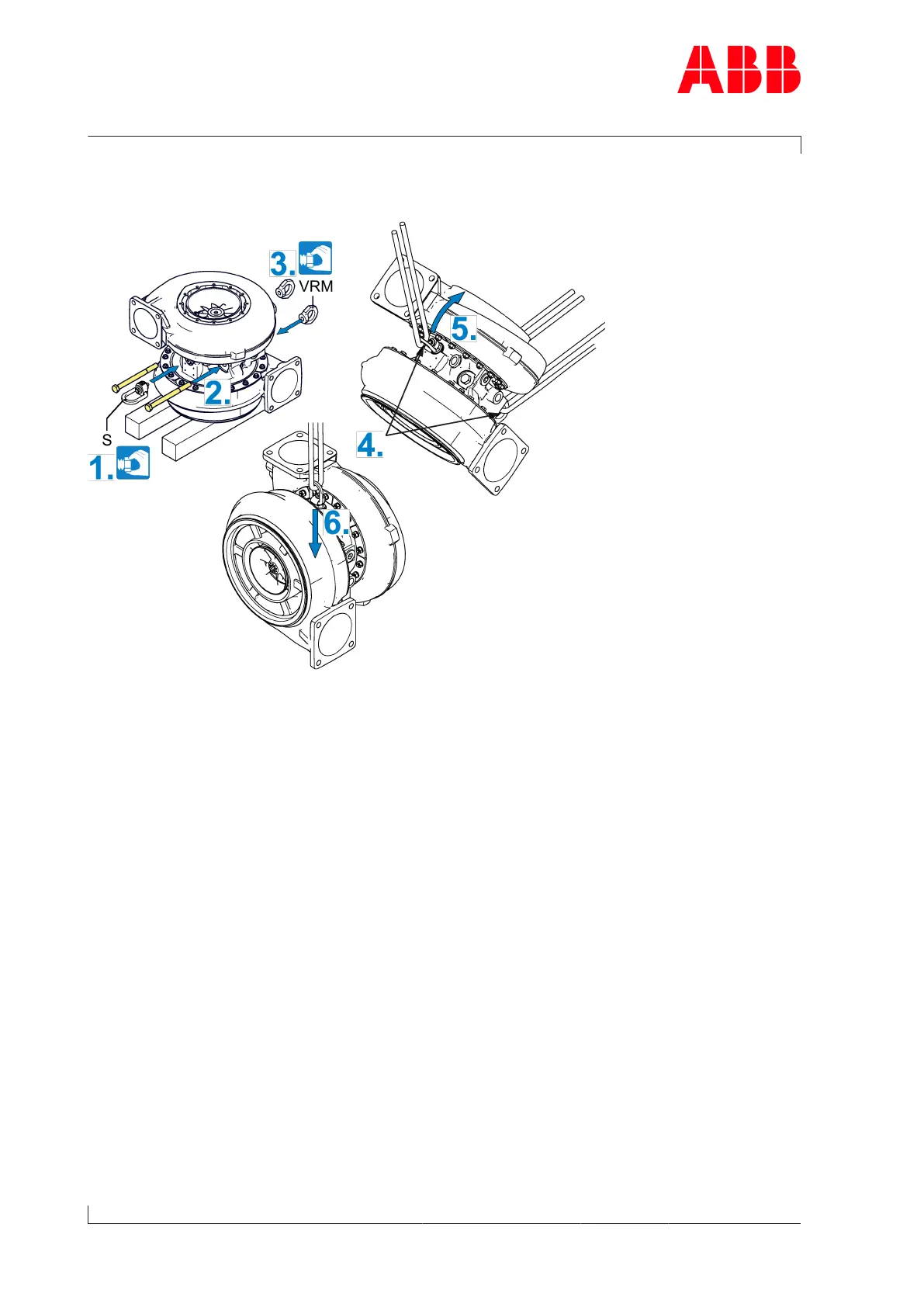

Fig.43: Rotating the turbocharger
1. Fit swivel lifting eye(S).
2. Insert screws from the service support.
3. Fit ring nuts(VRM).
4. Attach lifting gear.
5. Elevate and rotate the turbocharger.
6. Place the turbocharger on a soft underlay.
u Measure: Radial clearances N and R.
