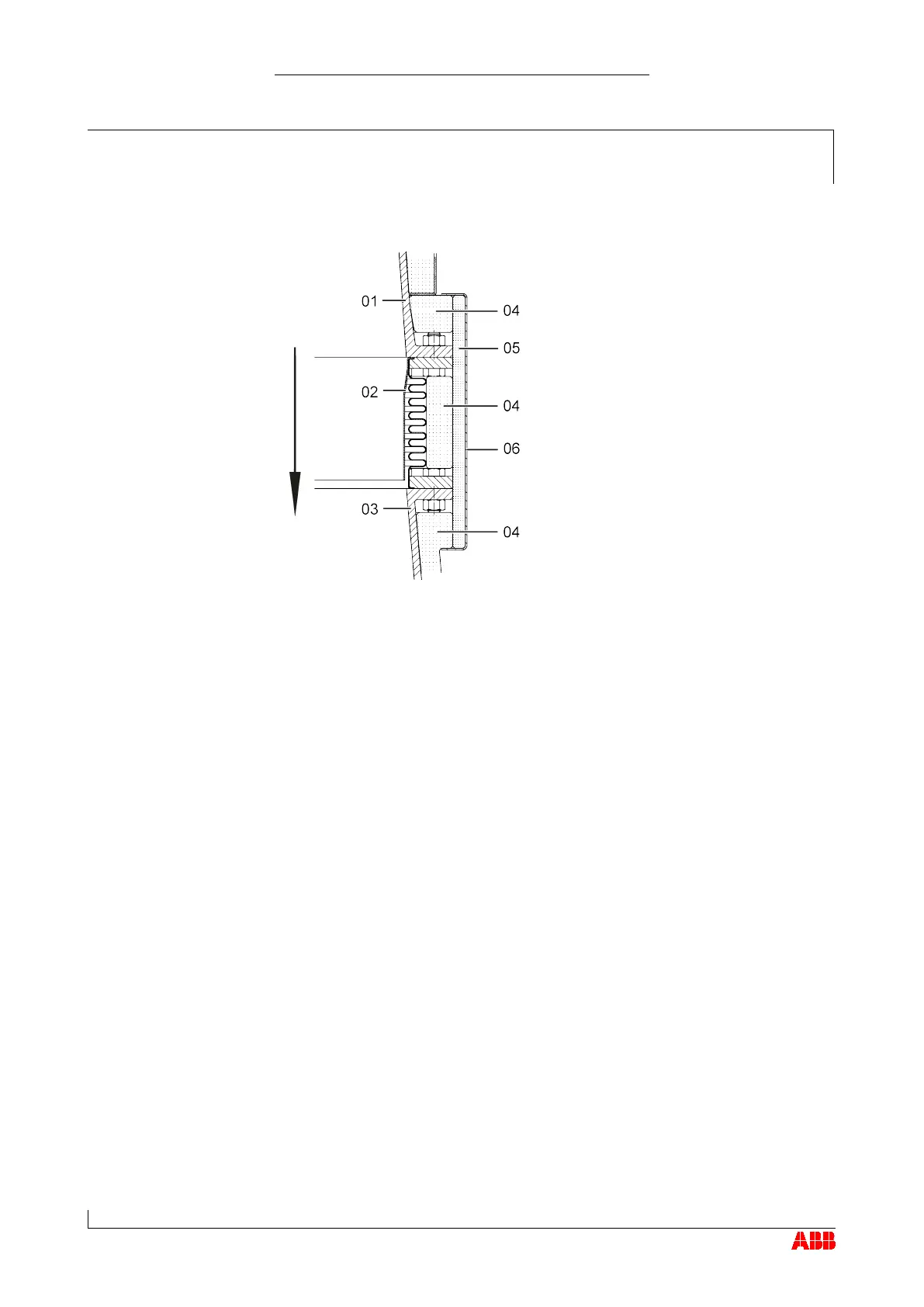

Suggestion for noise insulation of the bellows
01 Compressor casing
02
Bellows
03
Charge air duct / scavenging air line
04
Insulation pads
05
Insulation mat (at least 15 mm)
06
Sheet metal cover
