2 - Characteristics
TRIO-8.5-TL-OUTD
TRIO-8.5-TL-OUTD-S
Pout% (320Vdc) Eff. (320Vdc)
20 95.1
30 95.9
50 96.6
75 96.7
100 96.5
Pout% (620Vdc) Eff. (620Vdc)
20 97.1
30 97.7
50 98.0
75 98.0
100 97.7
Pout% (800Vdc) Eff. (800Vdc)
20 95.7
30 96.7
50 97.3
75 97.5
100 97.5
90
91
92
93
94
95
96
97
98
99
100
Eciency, %
% of Rated Output Power
320 Vdc
620 Vdc
800 Vdc
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

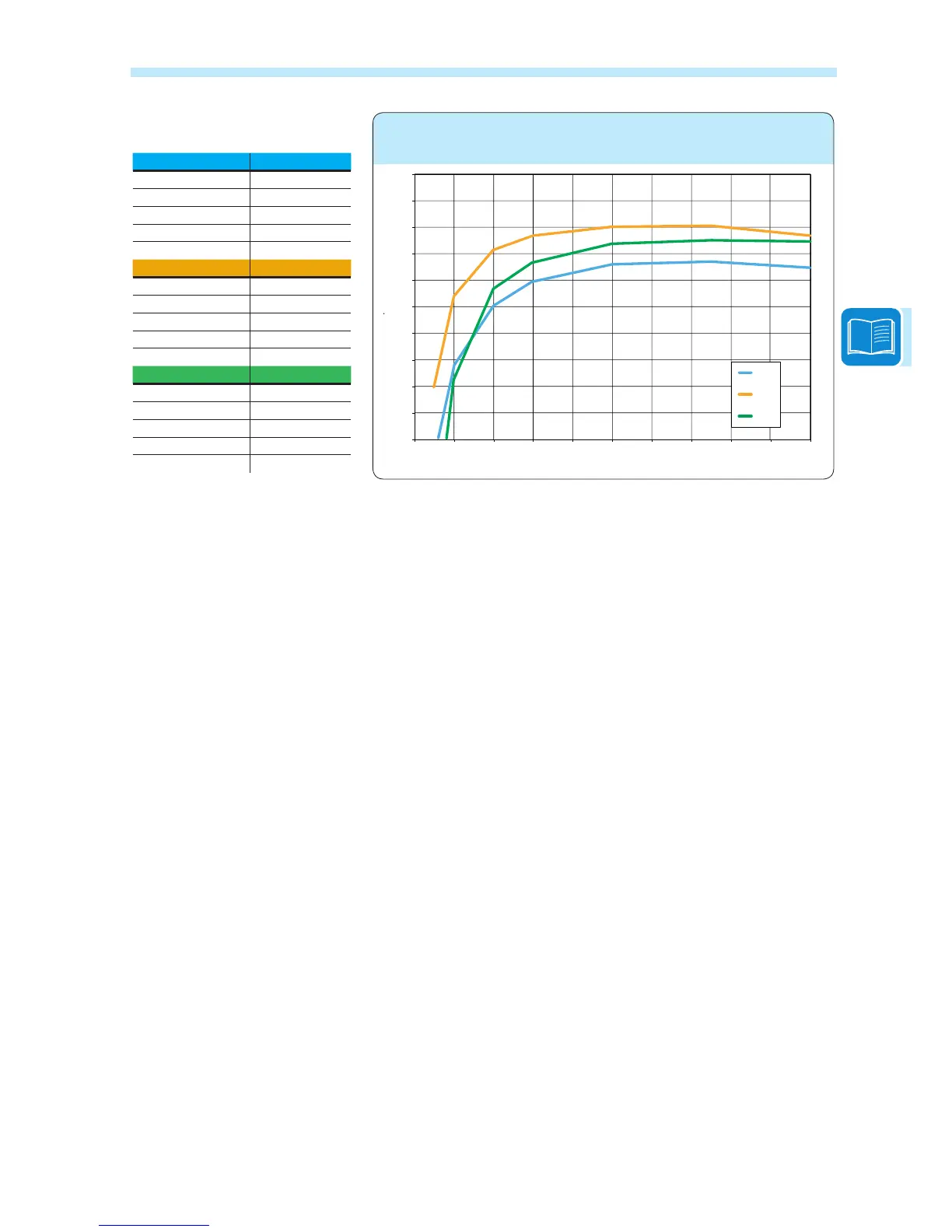

Efciency curves
Power derating
In order to allow inverter operation in safe thermal and electrical condi-
tions, the unit automatically reduces the value of the power fed into the
grid.
Power limiting may occur due to:
• Adverse environmental conditions (thermal derating)
• Percentage of output power (value set by the user)
• Grid voltage over frequency (mode set by user)
• Grid over voltage U>10min Der. (enabling carried out by user)
• Anti-islanding
• Grid under voltage
• Input voltage values too high.
• Input current values too high.
