ABB TX series - 12 Appendix C Remote Mounting

Operating instruction manual | TX Thermal Disperson Level Switches 21

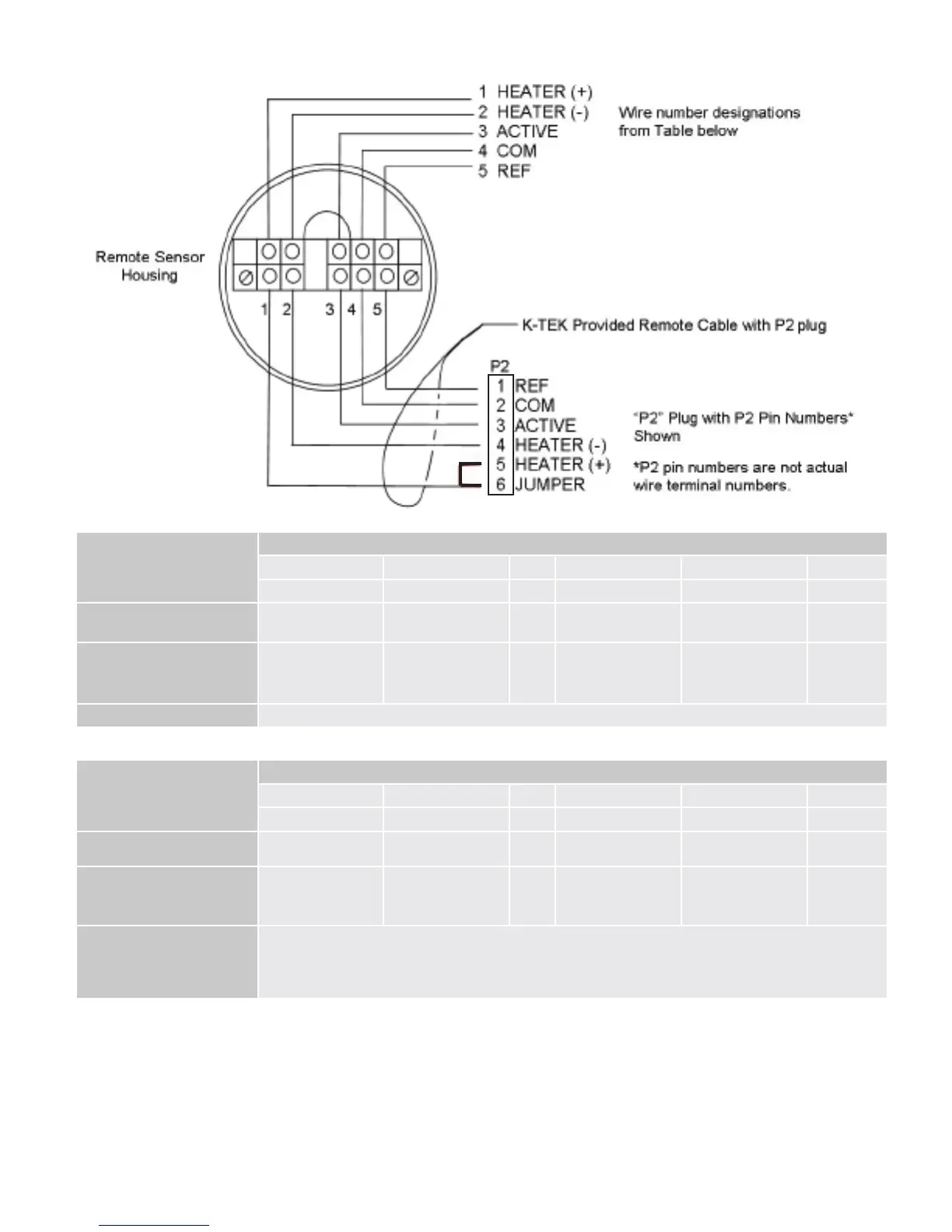

12.0 APPENDIX C - Remote Mounting
TERMINAL NUMBER
1 2 3 4 5
HTR HTR ACT COM REF
Standard Temperature
Range
RED RED YEL BLK GRN
Special Temperature
Range, Option H1 –320°F
- +500°F
RED RED WHT BLK GRN
SEE WIRE MARKERS
Special Temperature
Range, Option H2 –100°F
- +900°F
TERMINAL NUMBER
1 2 3 4 5
HTR HTR ACT COM REF
Integral Electronics RED RED YEL BLK GRN
Remote Electronics Type J
Cable (PVC)
BLUE WHITE + DRAIN WHT BLK GRN
Remote Electronics Type F
Cable (Teon)
RED OF PAIR 1
RED FOIL
BLACK OF PAIR
1 + DRAIN OF
PAIR 3
WHITE OF PAIR
2 GRN FOIL
BLACKS OF
PAIRS 2 & 3
GREEN
OF PAIR
3 BLUE
FOIL
