ABB VICPAS CP660-x - Dimensions

Operating Instructions 11 CP650, CP660, CP675

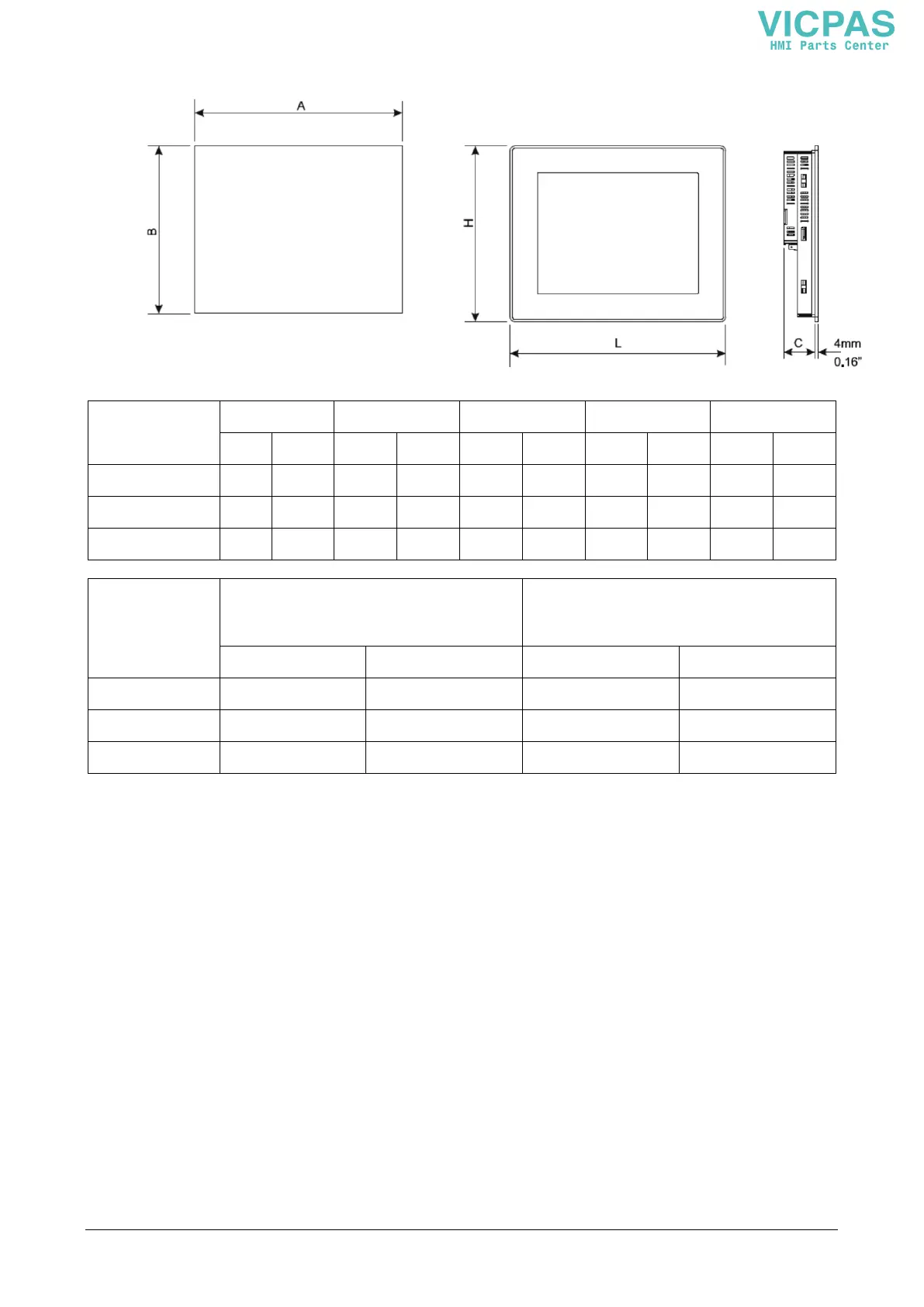

Dimensions
Model
A
B
C
H
L
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
CP650(-WEB)-x
276
10.86”
221
8.70”
42
1.65”
232
9.13”
287
11.30”
CP660(-WEB)-x
326
9.30”
256
10.1”
42
1.65”
267
10.51”
337
13.26”
CP675(-WEB)-x
381
15”
296
11.65”
46
1.82”
307
12.1”
392
15.43”
Model
CSD: Minimum compass safe distance
of standard compass
CSD2: Minimum compass safe distance
of steering compass, standby steering
compass and emergency compass
mm
inches
mm
inches
CP650(-WEB)-x
400
15.74”
250
9.84”
CP660(-WEB)-x
500
19.68”
300
11.81”
CP675(-WEB)-x
650
25.60”
400
15.74”
