Operating Instructions 15 CP650, CP660, CP675
Communication Cable
The communication cable must be chosen for the type of device being connected.

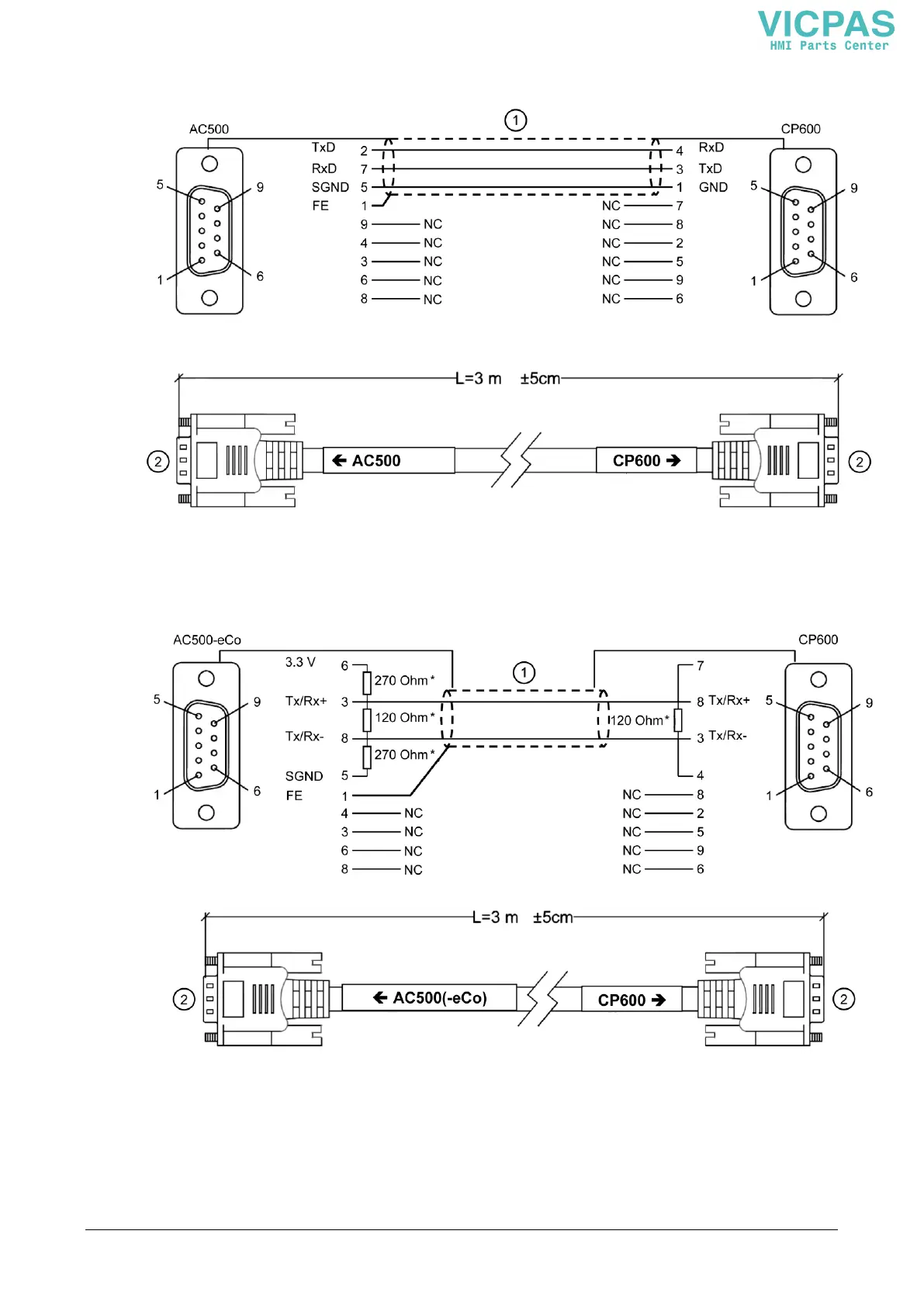

Connection to an AC-500 with the TK681 CP600-AC500 RS232 communication cable
Connection to an AC-500(-eCo) with the TK682 CP600-AC500-eCo RS485 communication cable
1
Shield
2
SubD9 male
