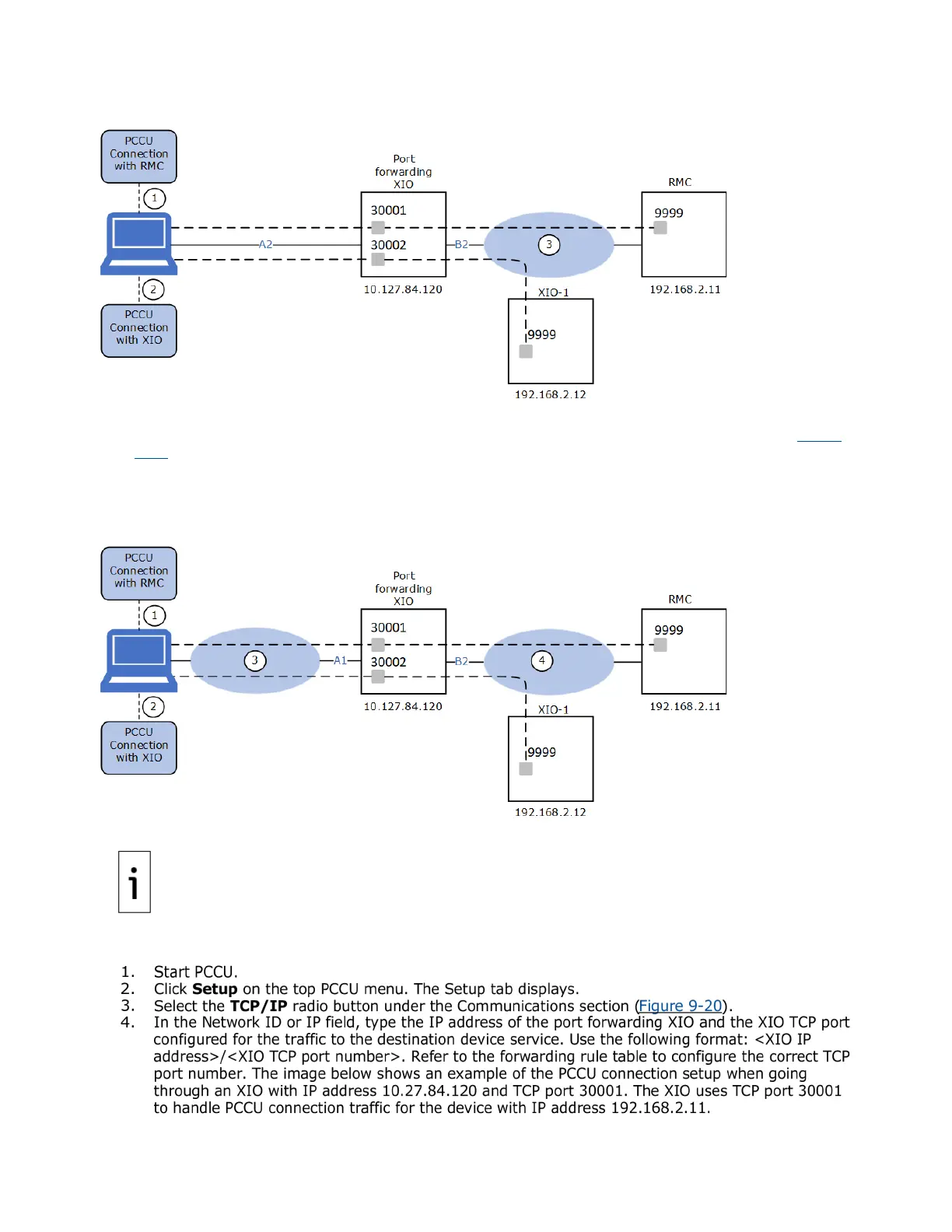

Figure 9-18: Verify local access
– Remotely: Verify connection from a remote host on the corporate network. In the example in Figure
9-19, the laptop with PCCU is connected to the corporate network (3) and establishes connection
over that network (WAN). Two instances of PCCU are used to verify connections. The PCCU
connection with the RMC (1) is handled at port XIO TCP port 30001. The PCCU connection with the
XIO-1 (2) is handled at XIO TCP port 30002.
Figure 9-19: Verify remote access
IMPORTANT NOTE:
Obtain a screen capture of the forwarding rule table before testing for
quick reference.
To verify access to the device using PCCU:
