74 | XIO USER MANUAL | 2106424MNAB

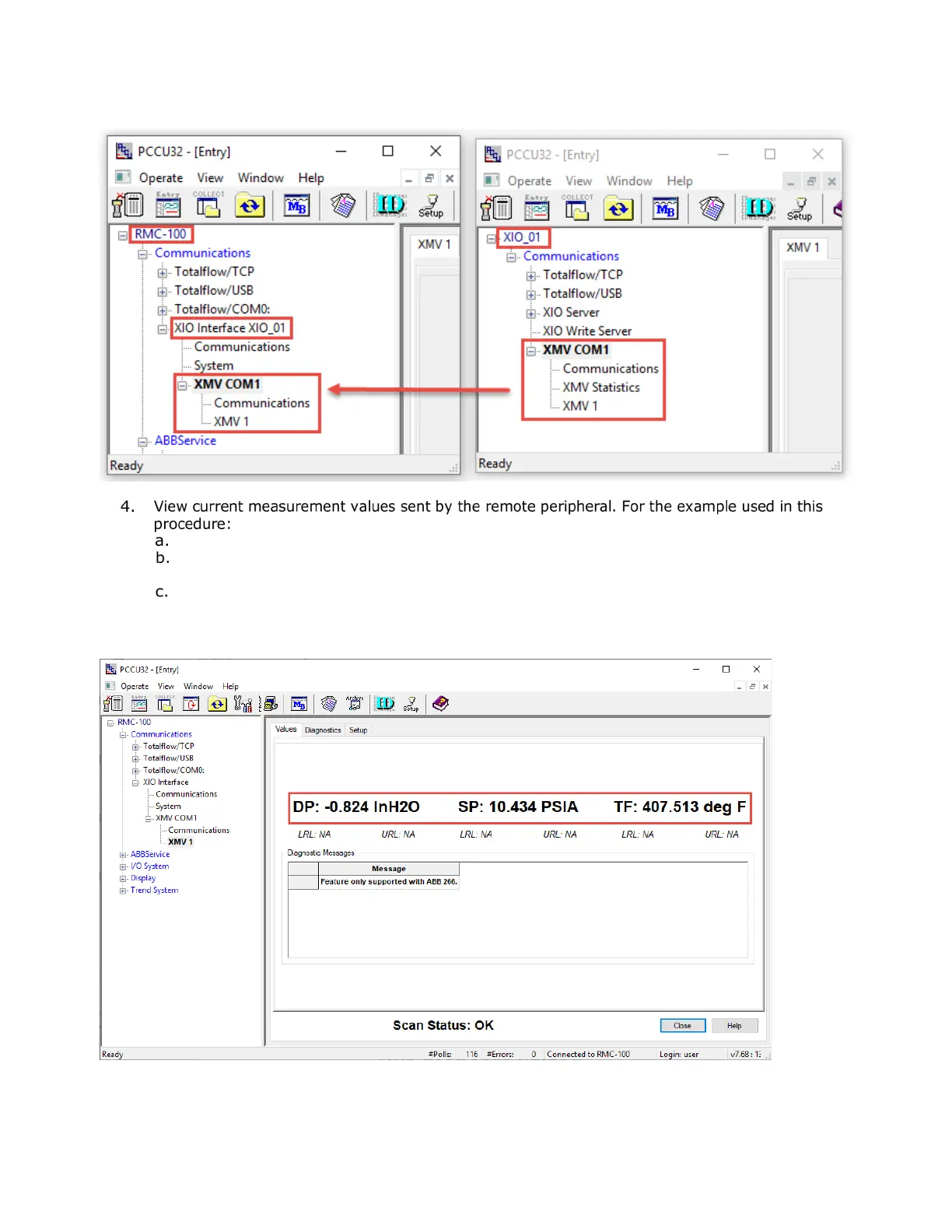

Figure 4-53: Exported XIO application visible on the RMC (left screen)
Expand the XMV application for the port of interest.
Select the remote multivariable of interest. For example, XMV1 (there may be multiple XMVs
connected to a single COM port).
View the values for DP, SP, and TF. Click Re-read to refresh to the latest values or select
Monitor to keep track of latest values as they change.
Figure 4-54: Verify RMC is receiving measurement data from remote peripheral
