XIO USER MANUAL | 2106424MNAB | 73

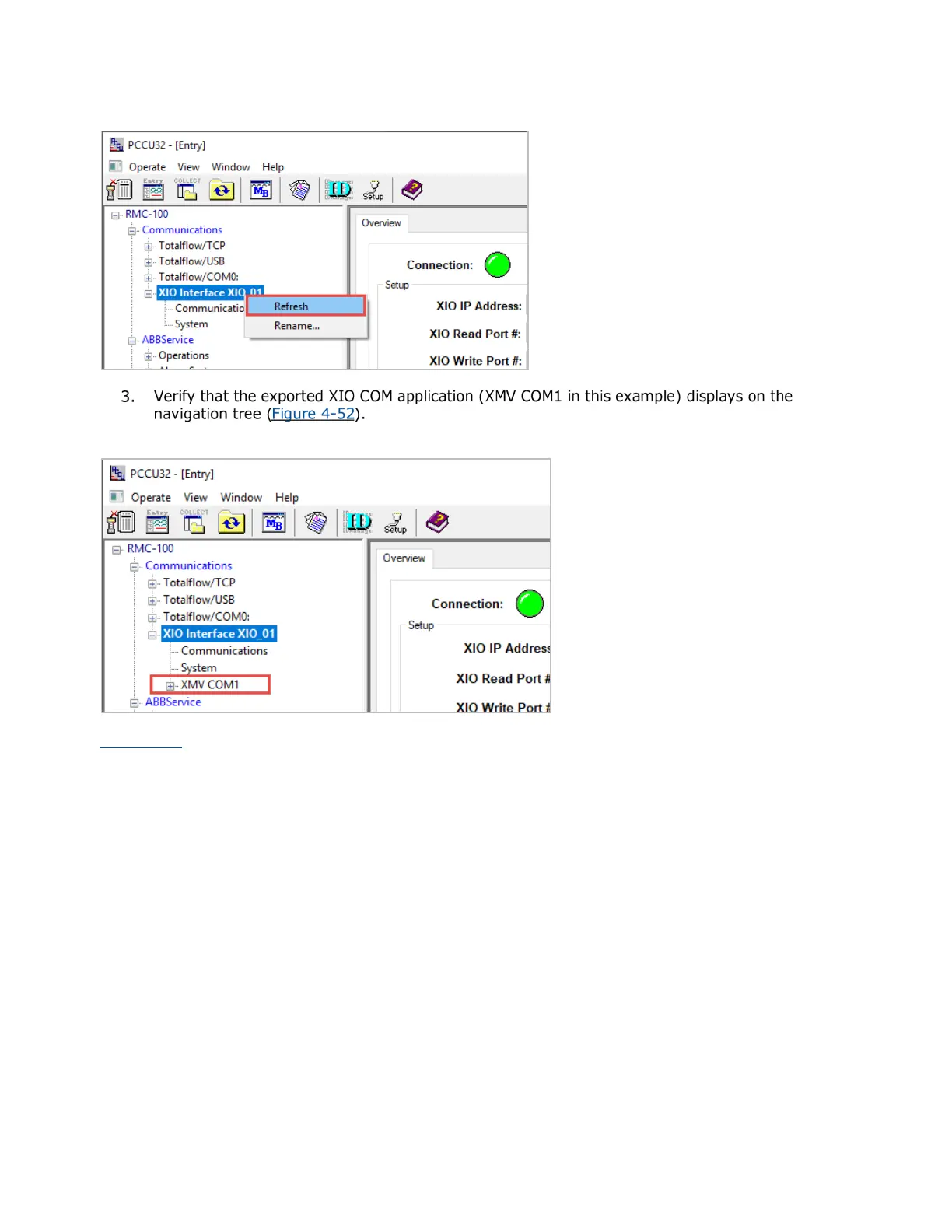

Figure 4-51: Refresh the navigation tree

Figure 4-52: Verify the XIO application displays on the RMC navigation tree

Figure 4-53

displays both RMC and XIO navigation trees. The RMC should display all exported XIO

applications.
