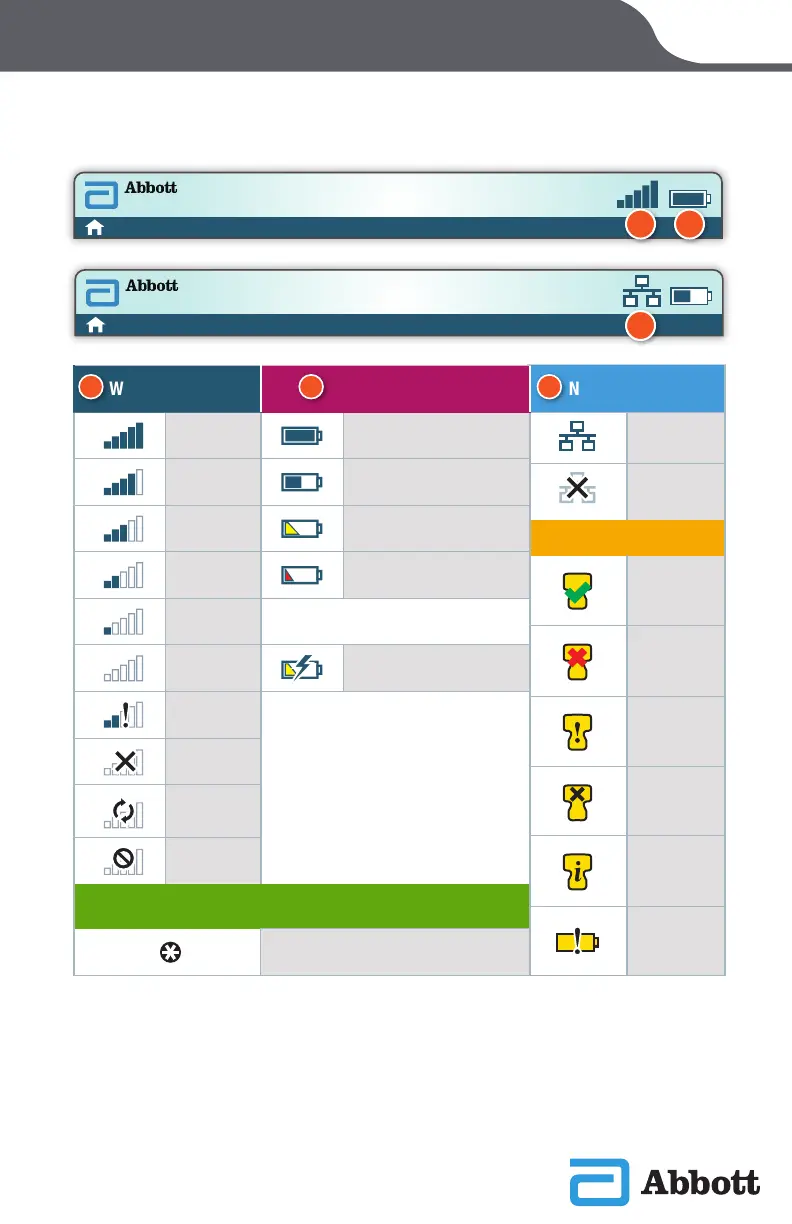

SCREEN COMPONENTS AND THEIR MEANINGS (CONT.)
A B
C
Network Status
Connected
Disabled*
Alert Icons
Pass
Fail
Warning
Instrument
locked
Information
Low Battery
Wireless Status Battery Status
Best Fully charged
Very Good Approx. 1/2 charged
Good Charge needed soon
Fair Charge immediately**
Poor
Bolt indicates actively charging
No Signal Charging
No
Connection
Wireless
Disabled*
Wireless
Connecting
Wireless
Not Allowed
Instructional Icons
Mandatory
A B C
*Disabled on instrument or via customization.
** Testing is disabled when the battery level is insufficient to perform a cartridge test.
