2-3-3 Using the keypad
The following section describes how the keys are usually employed. Some
of the keys may have specific functions which will be indicated when
necessary.
2-3-4 Emergency keys
This control panel provides 3 "key-duos" for Emergency Calls which can be
activated by pressing the respective keys on any of the system keypads:
1. + = Fire Emergency
2. + = Ambulance Emergency
3. + = Police Emergency
Utilization of any of the "key-duos" will generate the respective events and
actions (e.g. activation of outputs and calls).
To activate an emergency call, press simultaneously and hold keys +
, or + , or + for at least 3 seconds until the
selected emergency call is confirmed by a beep.
Nota Bene If any two function keys are pressed at the same time, the functions relating to the
keys will not be activated.

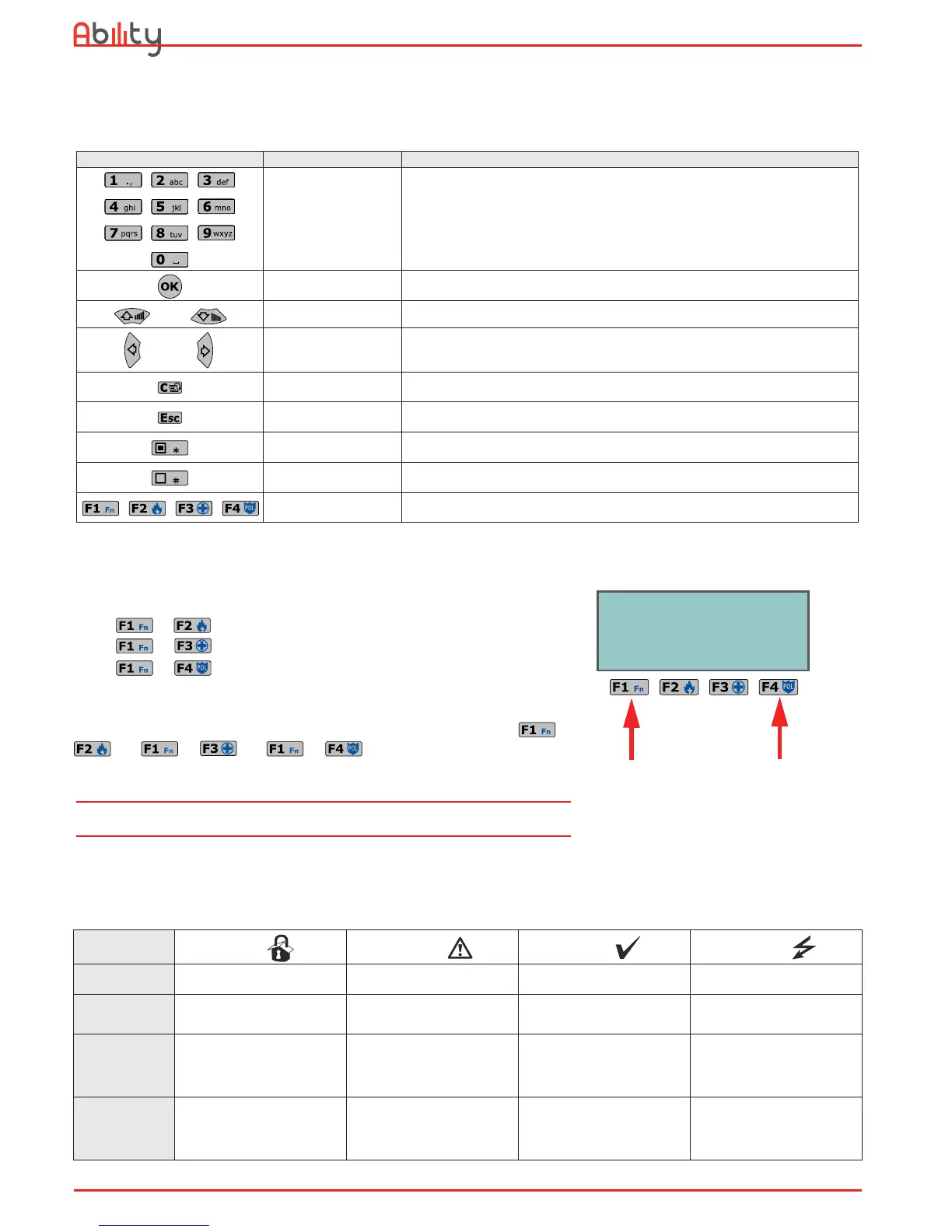

2-3-5 Visual signals on the keypad LEDs
The following table describes the visual signals on the keypad LEDs.
Table 3:
The keys
Keys Name Typical application
Number keys
Used to type in User PINs
OK Confirms the selected item (parameter, etc.)
UP, DOWN Navigate through the menu lists or adjust keypad volume
LEFT, RIGHT Scroll along the data rows (for example, partitions in the events log, etc.).
C Steps back on the open menu without changing the selected item (parameter, etc.).
ESC Exits the User menu without changing the selected item (parameter, etc.).
ENABLE Enables options (refer to paragraph 4-3 Activations)
DISABLE Disables options
F1, F2, F3, F4
or function keys
Activate the associated shortcuts.
Can be used also as Emergency keys (refer to paragraph 2-3-4 Emergency keys).
18:23 20/08/2011
DTPID
No alarms
No faults
Press simultaneously
Table 4: Keypad LEDs
LED
Red Yellow Blue Green
OFF
(no light)
All the keypad partitions are
disarmed.
No faults present.
Open zones on the keypad
partitions.
Primary power failure (230V
a.c.)
ON
(Solid)
At least one of the keypad
partitions is armed.
At least one fault has been
detected.
All the zones on the keypad
partitions are in standby
status: Ready to arm.
Primary power OK (230V a.c.)
Slow blinking
(ON: 0.5sec
OFF: 0.5sec)
All the keypad partitions are
disarmed. Memory of alarm/
tamper on at least one of the
keypad partitions or memory
of a system alarm.
No faults present. At least one
of the zones on the keypad
partitions is bypassed (OFF ).
Fast blinking
(ON: 0.15sec
OFF: 0.15sec)
At least one keypad-partition
is armed. Memory of alarm/
tamper on at least one of the
keypad partitions or memory
of a system alarm.
At least one fault has been
detected and at least one of
the zones belonging to the
keypad partitions is bypassed
(OFF ).
