A-N68SV Series 7

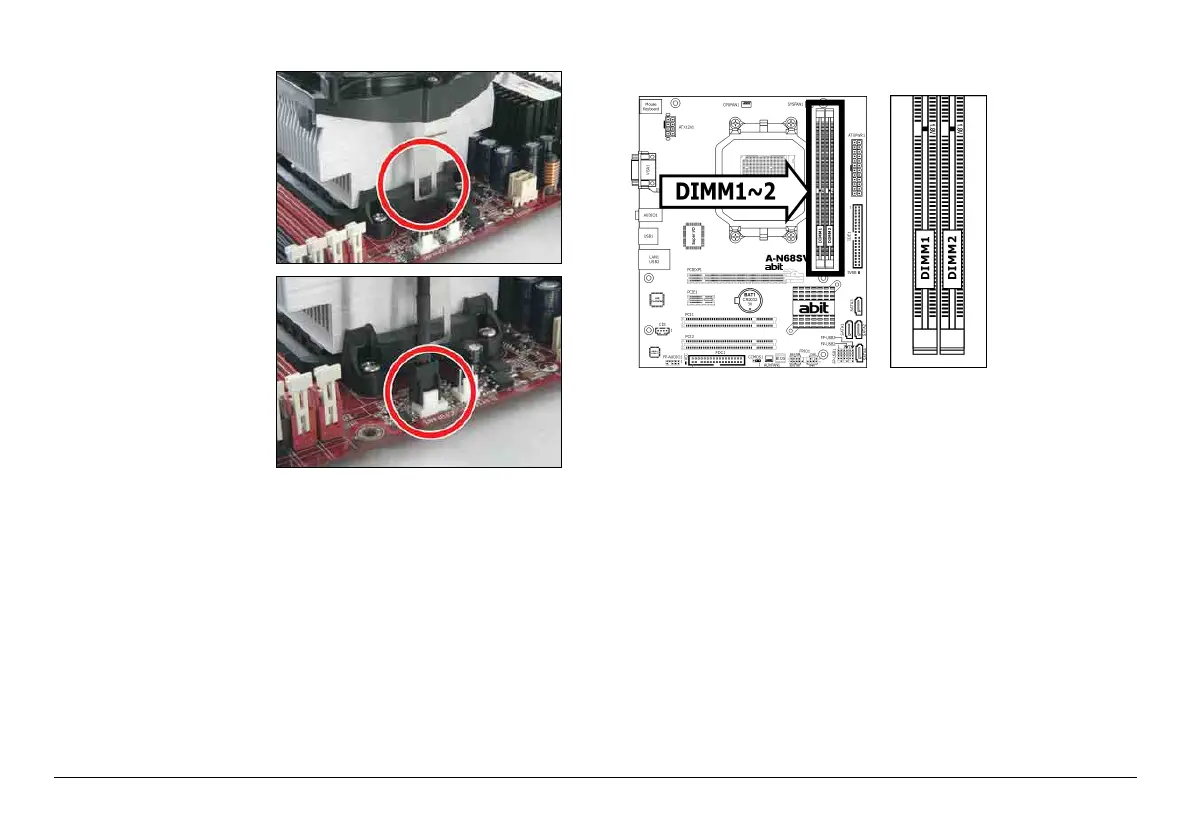

5. On the other side, push
the retention clip
straight down to lock
into the plastic lug on
the retention frame.
6. Connect the CPU cooling
fan power cable to the
“CPU_FAN” connector
on this motherboard.
※ The “CPU_FAN” connector can be connected either with a 3-Pin or
4-Pin CPU cooling fan. For a 3-Pin connection, there will be no
speed control available in the BIOS setup menu; the CPU fan will
run at full speed.
Also, please watch out for the orientation when inserting 3-Pin plug
into this 4-Pin fan connector.
※ The motherboard in this illustration is served for DEMO only, may
not be the same type or model as the one described in this user’s
manual.
※ A higher fan speed will be helpful for better airflow and
heat-dissipation. Nevertheless, stay alert to not touch any heatsink
since a high temperature generated by the working system is still
possible.
1.6.2 Memory Slots
• Install DIMMs with the same CAS latency. To reach the optimum
compatibility, obtain memory modules from the same vendor.
※
Usually there is no hardware or BIOS setup required after adding or
removing memory modules, but you will have to clear the CMOS
memory first if any memory module related problem occurs.
