1.10 Connecting Rear Panel I/O Devices

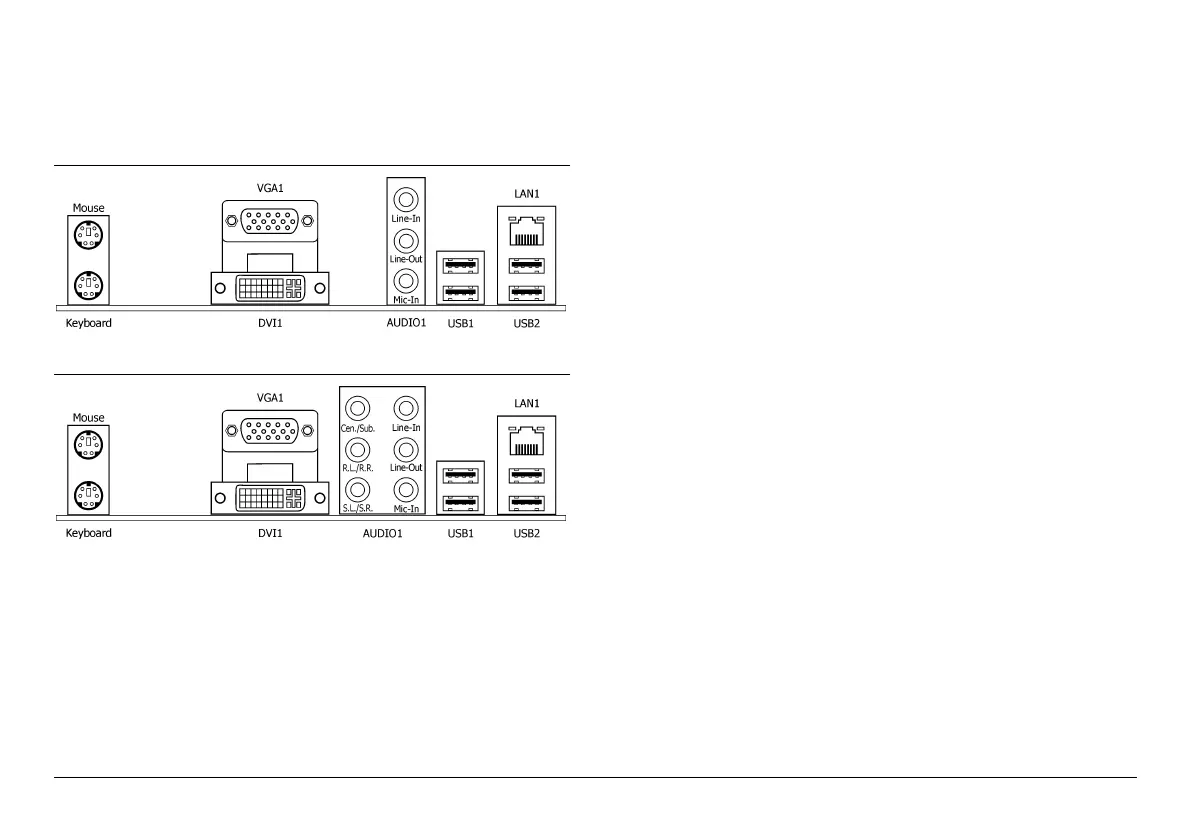

The rear I/O part of this motherboard provides the following I/O ports:
A-N68SV version:
Other version:
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• VGA1/DVI1: Connects to monitor input.
• AUDIO1:
(Available for 5.1- or 7.1-Channel, depending on
version.)
Cen./Sub. (Center / Subwoofer): Connects to the center and
subwoofer channel.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left
and rear right channel.
S.L./S.R. (Surround Left / Surround Right): Connects to the
surround left and surround right channel.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel.
Mic-In: Connects to the plug from external microphone.
• USB1/USB2: Connects to USB devices such as scanner, digital
speakers, monitor, mouse, keyboard, hub, digital camera, joystick
etc.
• LAN1: Connects to Local Area Network.
