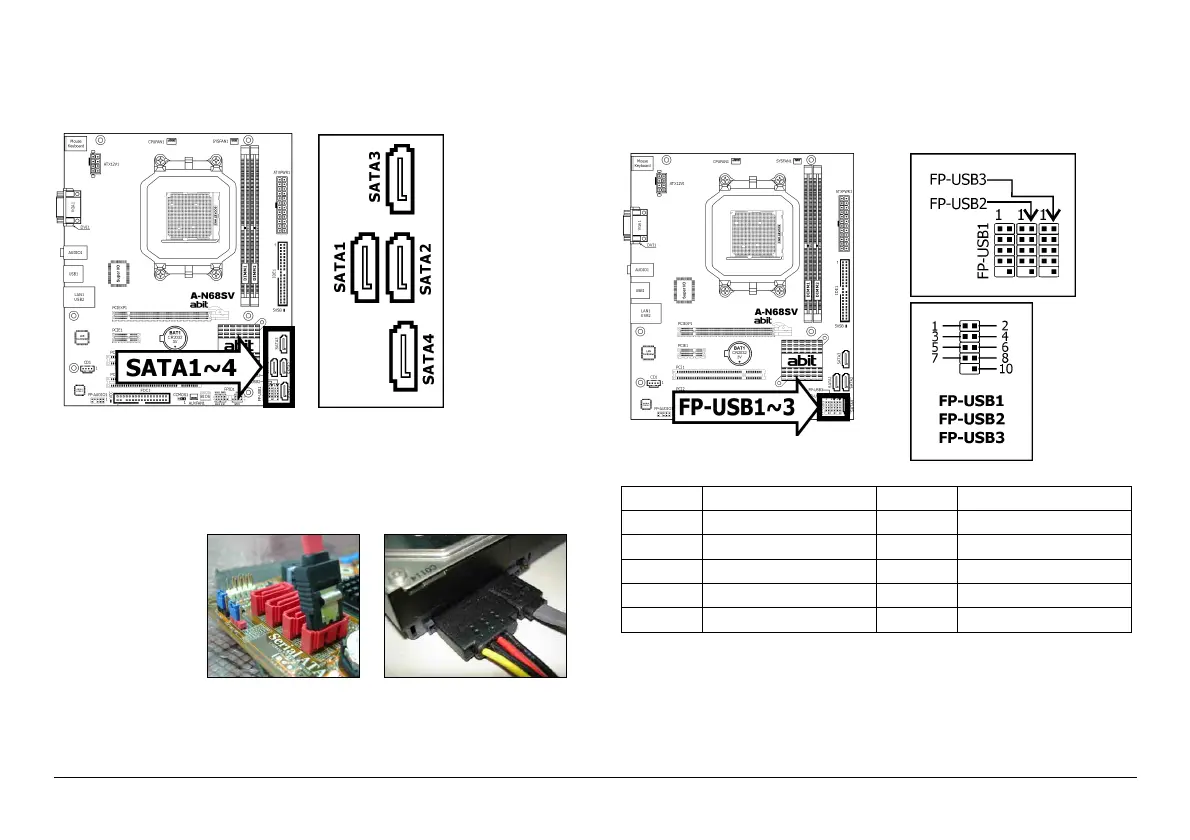

1.7.2 Serial ATA Connectors
Each SATA connector serves as one single channel to connect one SATA
device by SATA cable.
To connect SATA device:
1. Attach either end of the signal cable to the SATA connector on
motherboard. Attach the other end to the SATA device.
2. Attach the SATA power cable to the SATA device and connect the
other end from the power supply.
※
The motherboard in this photo is served for DEMO only, and may not
be the same type or model as the one described in this manual.
1.7.3 Additional USB 2.0 Port Headers
Each header supports 2x additional USB 2.0 ports by connecting
bracket or cable to the rear I/O panel or the front-mounted USB ports
of your chassis.
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data0 - 4 Data1 -
5 Data0 + 6 Data1 +
7 Ground 8 Ground
10 NC
※ Make sure the connecting cable bears the same pin assignment.
