Abit A-N68SV Series User Manual

10 A-N68SV Series

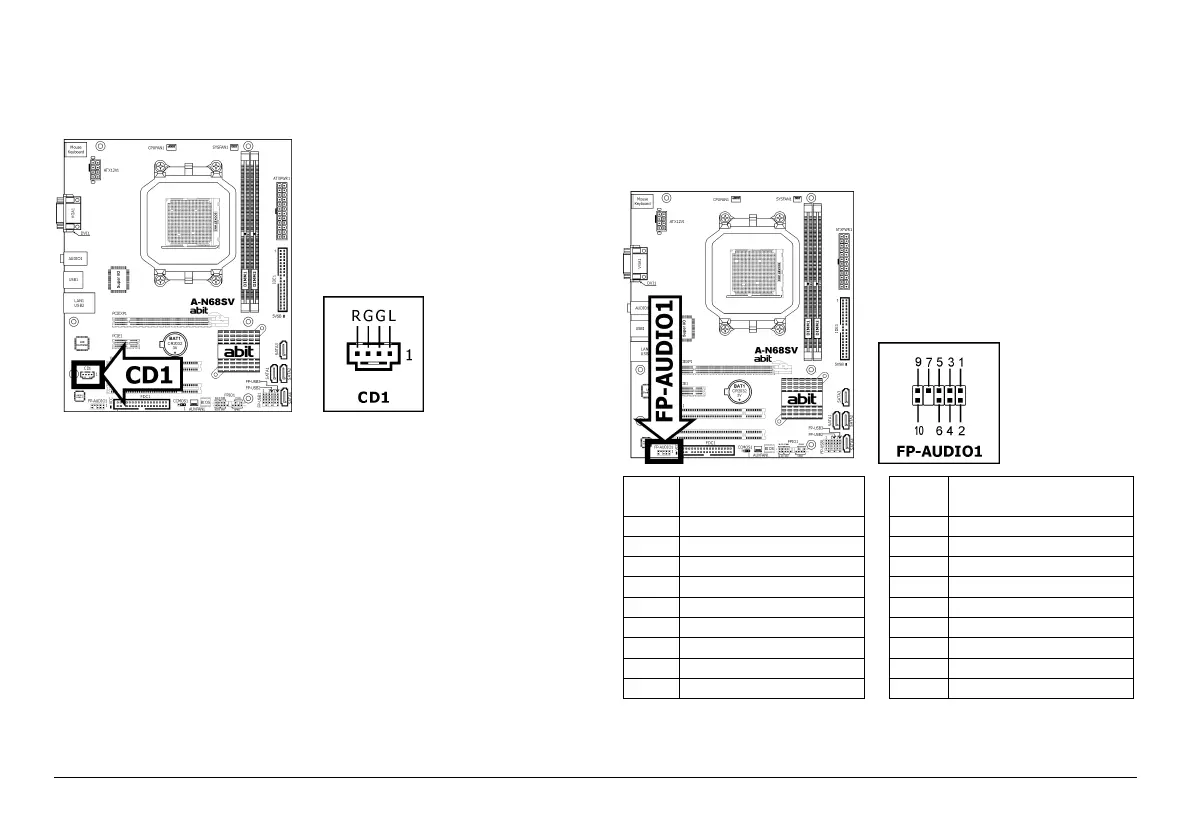

1.7.4 Internal Audio Connectors
This connector connects to the audio output of internal CD-ROM drive
or add-on card.
1.7.5 Front Panel Audio Connection Header
This header provides the front panel connection for HD (High Definition)
Audio, yet for AC’97 Audio CODEC connection, you must carefully check
the pin assignment before connecting from the front panel module. An
incorrect connection may cause malfunction or even damage the
motherboard.
Pin
Pin Assignment
(HD AUDIO)
Pin
Pin Assignment
(AC’97 AUDIO)
1 MIC2 L 1 MIC In
2 AGND 2 GND
3 MIC2 R 3 MIC Power
4 AVCC 4 NC
5 FRO-R 5 Line Out (R)
6 MIC2_JD 6 NC
7 F_IO_SEN 7 NC
9 FRO-L 9 Line Out (L)
10 LINE2_JD 10 NC
※ Please do not connect the “Ground” cable or “USB VCC” cable from
the front panel module to the Pin 4 “AVCC” of this header.
