2-12 Chapter 2

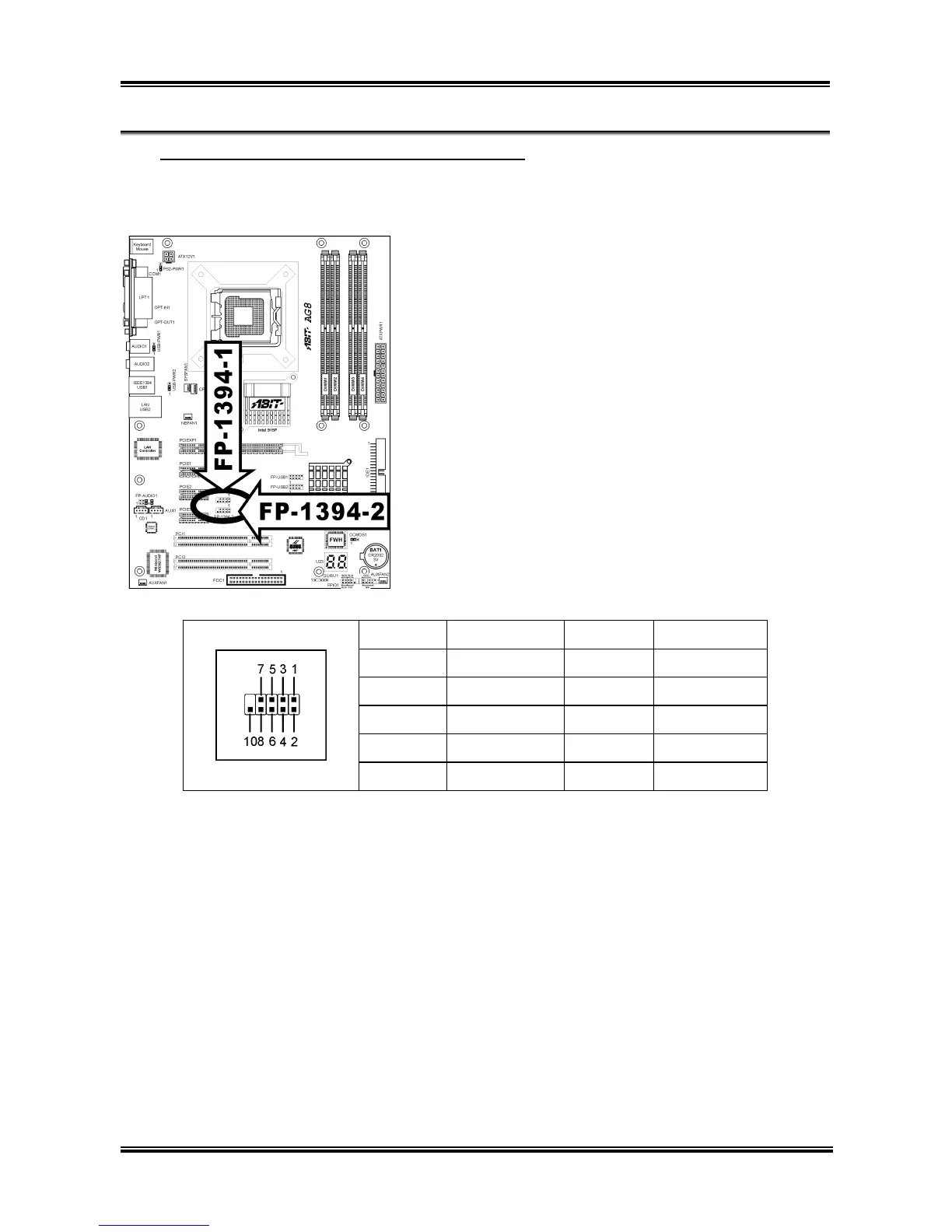

(7). Additional IEEE1394 Port Headers (For AG8 only)
These headers each provide one additional IEEE1394 port connection through an extension cable and
bracket.
Pin Pin Assignment Pin Pin Assignment
1 TPA0 + 2 TPA0 -
3 Ground 4 Ground
5 TPB0 + 6 TPB0 -
7 +12V 8 +12V
9 NC 10 Ground
