BIOS Setup 3-9

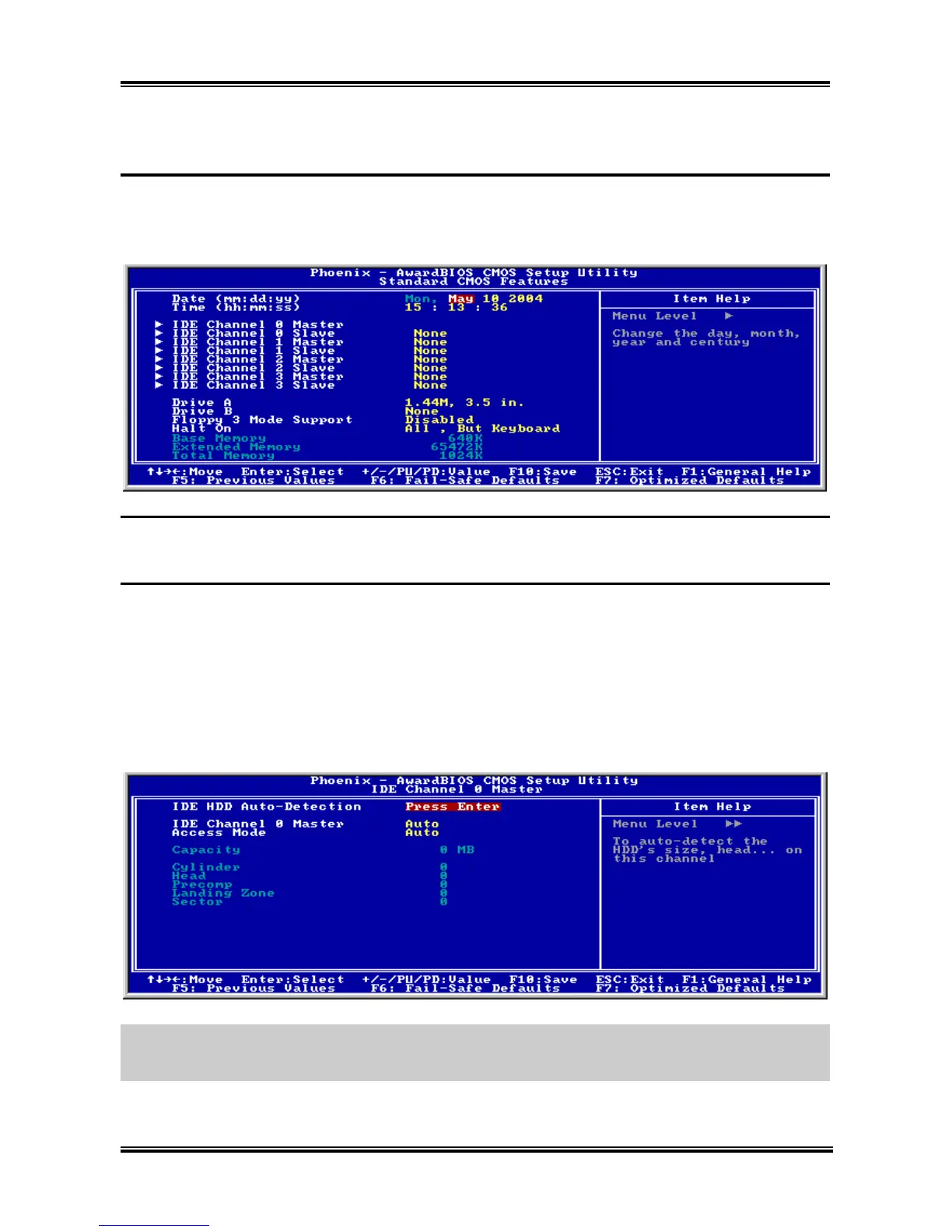

3-2. Standard CMOS Features
This section contains the basic configuration parameters of the BIOS. These parameters include date,
hour, VGA card, FDD, and HDD settings.
Date (mm:dd:yy):
This item sets the date you specify (usually the current date) in the format of [Month], [Date], and [Year].
Time (hh:mm:ss):
This item sets the time you specify (usually the current time) in the format of [Hour], [Minute], and
[Second].
IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE Channel 2
Master/Slave, IDE Channel 3 Master/Slave:
Click <Enter> key to enter its submenu:
NOTE: The items “IDE Channel 2 Master/Slave” and “IDE Channel 3 Master/Slave” appear only when
the item “On-Chip Serial ATA” in the “OnChip IDE Device” menu is set to [Enhanced Mode], or set to
[Auto Mode] when SATA ports are connected with devices.
