Hardware Setup 2-17

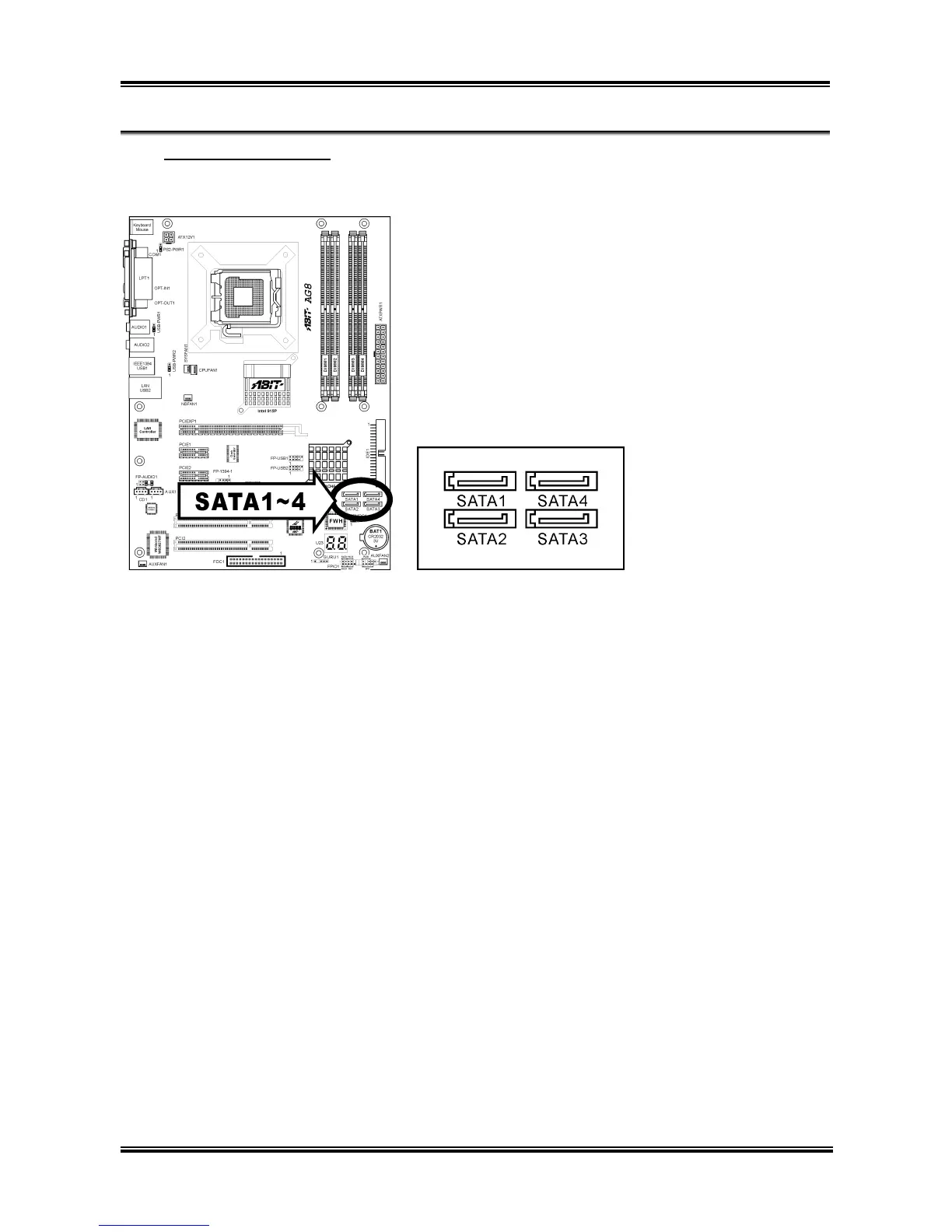

(13). Serial ATA Connectors
These connectors are provided to attach one Serial ATA device at each channel via Serial ATA cable.
For AG8 only: This motherboard provides RAID 0 and RAID 1 configuration for Serial ATA hard drives
through the Intel ICH6R chipset. You may configure a disk array by the Intel Application Accelerator
RAID option ROM utility.
For more information on how to configure the function mode for SATA, please refer to the item
“On-Chip Serial ATA” in the BIOS menu of “OnChip IDE Device”.
