1.10 Connecting Rear Panel I/O Devices

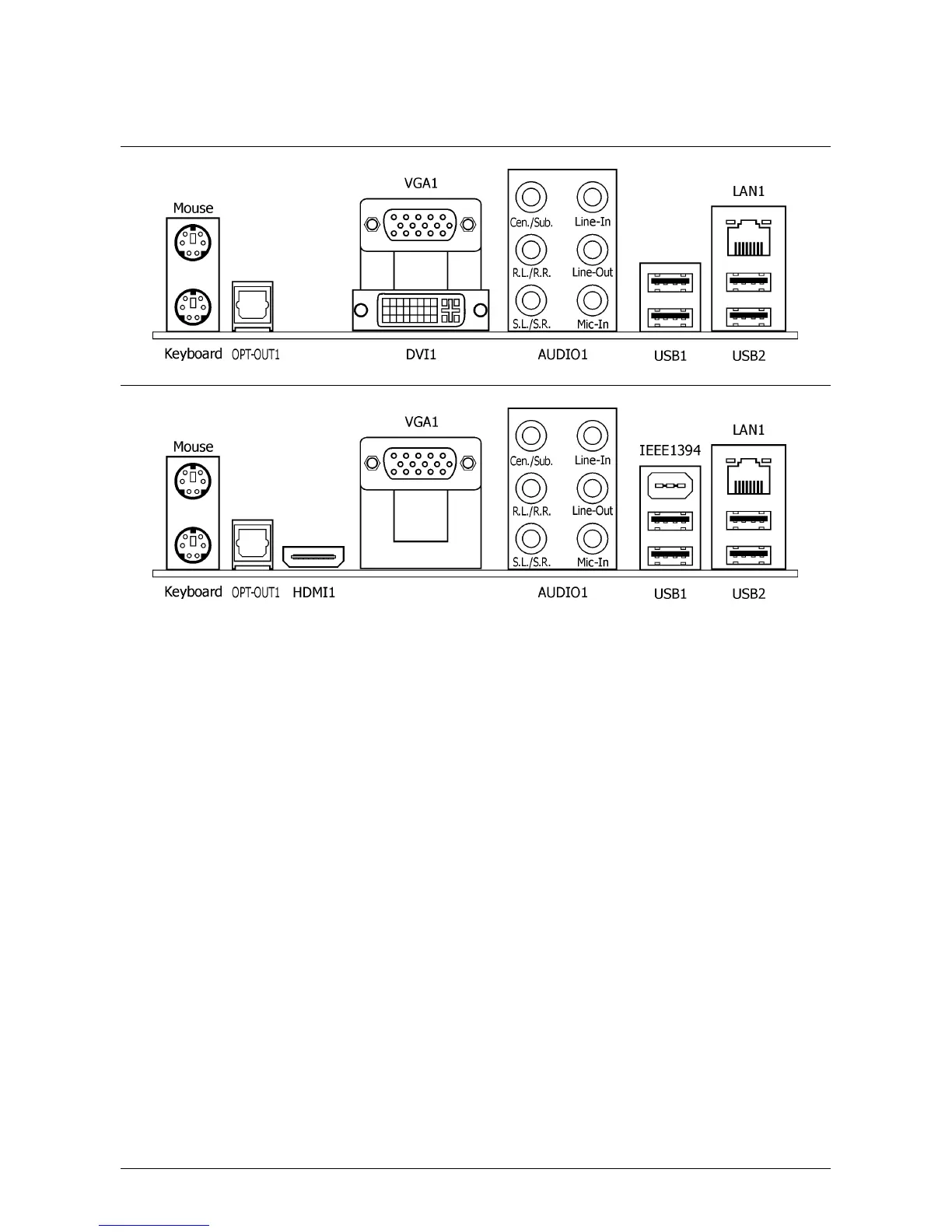

The rear I/O part of this motherboard provides the following I/O ports:
AN-M2
AN-M2HD
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• OPT-OUT1: This connector provides an S/PDIF-Out connection through optical fiber to
digital multimedia devices.
• HDMI1: Connects to multimedia devices of HDMI protocol.
(For AN-M2HD only)
To enable this HDMI function, you will have to select “HD Audio rear output” as the
sound playback device in the “Sounds and Audio Devices Properties” by Windows’
Control Panel.
• VGA1/DVI1: Connects to monitor input.
• AUDIO1:
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel.
S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and
surround right channel.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel.
Mic-In: Connects to the plug from external microphone.
• LAN1: Connects to Local Area Network.
• IEEE1394: Connects to devices of IEEE1394 protocol.
(For AN-M2HD only)
• USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
