Abit Fatal1ty AA8XE - Front Panel COM1 Connection Header

2-14 Chapter 2
(7). Front Panel COM1 Connection Header

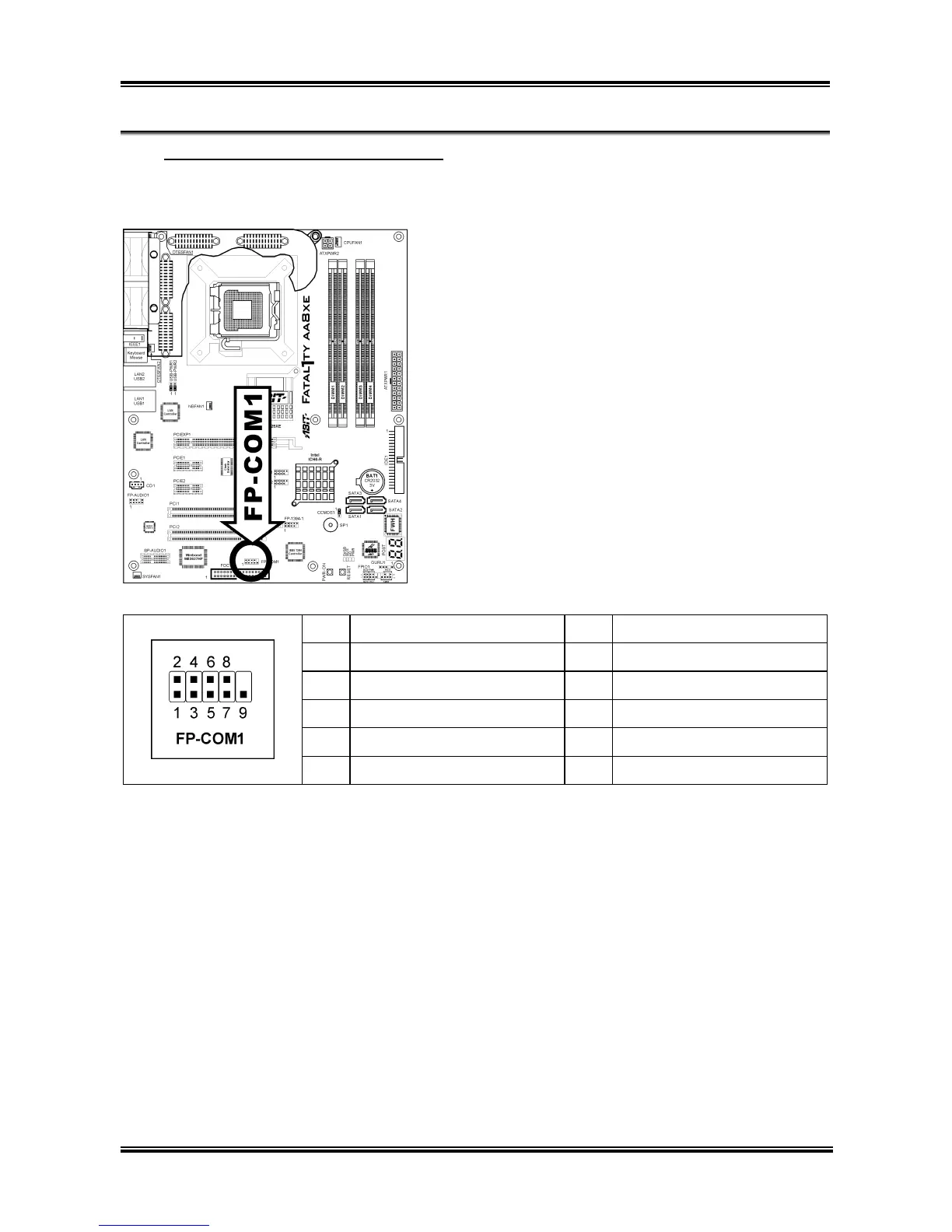

This header provides one additional COM1 port connection through an extension cable and bracket.
Pin Pin Assignment Pin Pin Assignment
1 DCD (Data Carrier Detect) 2 RXD (Receive-Data)
3 TXD (Transfer-Data) 4 DTR (Data-Terminal-Ready)
5 GND 6 DSR (Data-Set-Ready)
7 RTS (Request-to-Send) 8 CTS (Clear-to-Send)
9 RI (Ring-Indicator) 10 NC (No Connected)
