Hardware Setup
SG-80DC 2-5

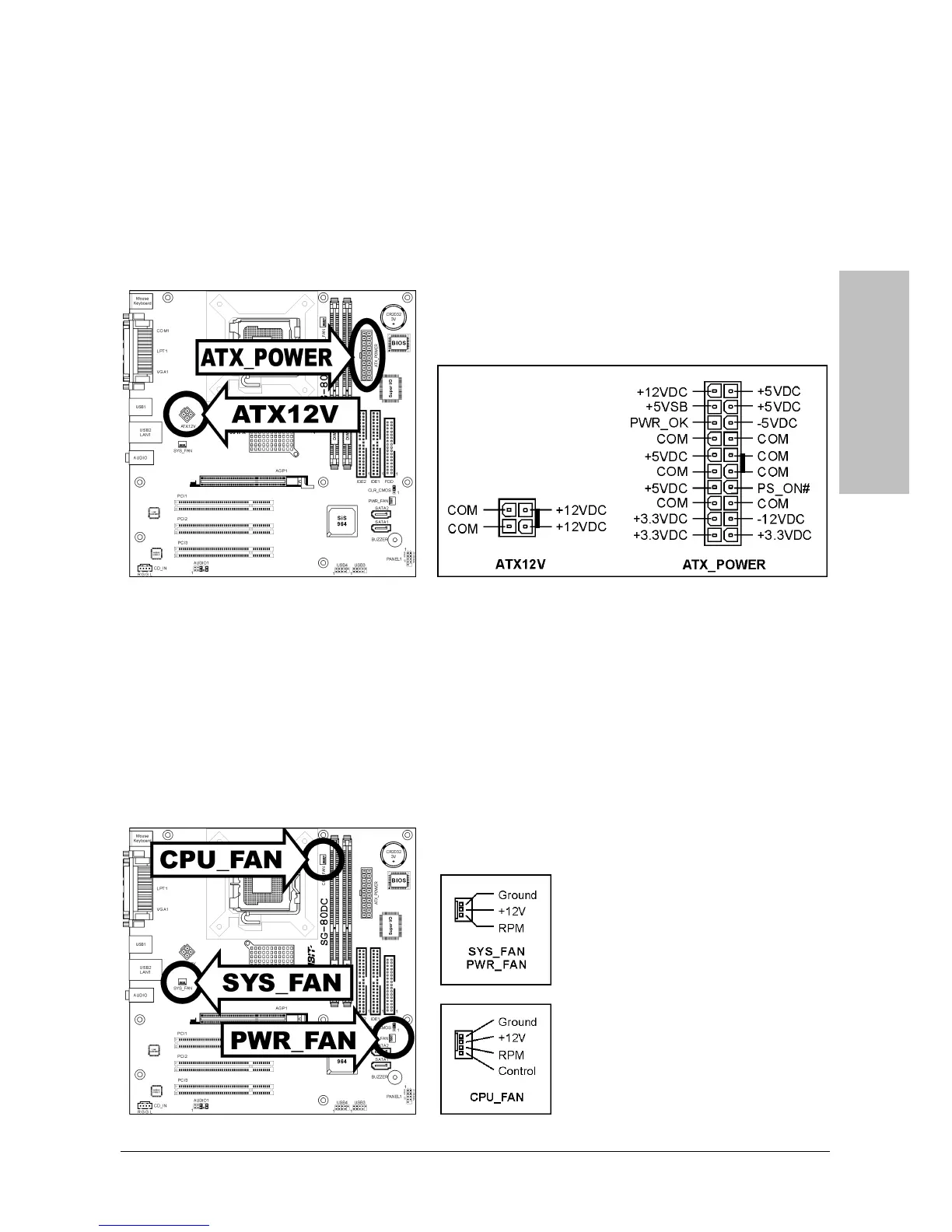

2.4 Connecting Chassis Components
2.4.1 ATX Power Connectors
These connectors provide the connection from an ATX power supply. As the plugs from the
power supply fit in only one orientation, find the correct one and push firmly down into these
connectors.
2.4.2 FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
• CPU_FAN: Power connector for CPU cooling fan
• SYS_FAN: System Fan Power Connector
• PWR_FAN: Auxiliary Fan Power Connector
※ These fan connectors are not jumpers. DO NOT place jumper caps on these
connectors.
