Wallbox eMH1 – Charging procedure |
21
English
You must under no circumstances make any changes to the housing or the internal wiring of the
device: Any disregard of this instruction fundamentally breaches the guarantee provisions and voids
the warranty with immediate effect.
Only have the product repaired by a qualified specialist electrical contractor authorised by ABL.
Charging procedure

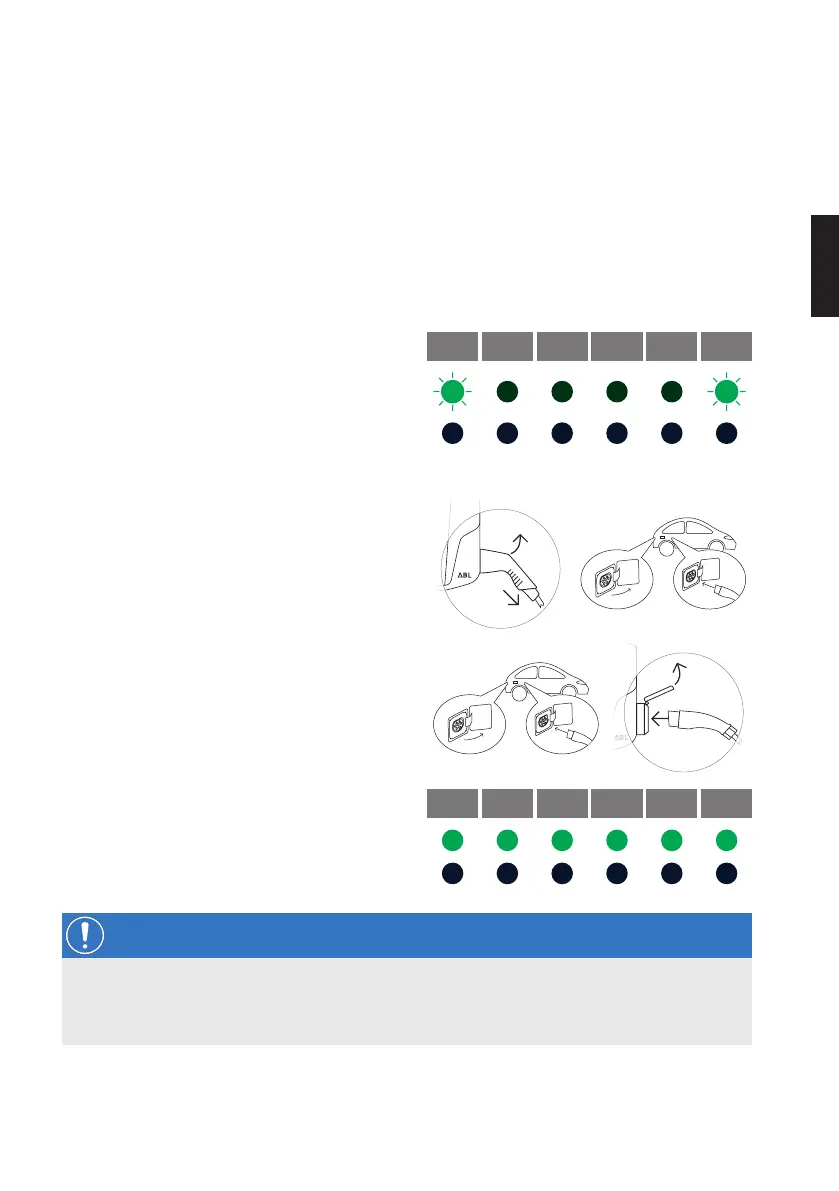

Proceed as follows to charge an electric vehicle using the Wallbox eMH1:
1 Park your electric vehicle so that its charging inlet can be easily reached with the charging cable's
charging connector.
2 Check the LEDs on the wallbox:
y When the wallbox is ready for operation,
the green LED will flash every 5 seconds,
while the blue LED will be OFF.
1 sec 1 sec 1 sec 1 sec 1 sec 1 sec
3 Prepare the charging cable of the wallbox and
the vehicle's charging inlet.
y Wallbox with charging cable
Slightly lift up the charging connector and
pull it downwards from its storage com-
partment. Open the charging inlet at the
vehicle and plug in the charging connector.
y Wallbox with charging socket
Open the charging inlet at the vehicle and
plug in the charging connector. Then open
the charging socket lid on the wallbox and
plug in the charging connector.
4 Check the LEDs on the wallbox:
y If the wallbox is waiting for authorisation
of the charging procedure by the electric
vehicle, the green LED is ON while the blue
LED is OFF.
1 sec 1 sec 1 sec 1 sec 1 sec 1 sec
NOTE
Initiation of charging procedure
The vehicle determines when the charging procedure begins:
The vehicle must request the initiation of the charging procedure.
